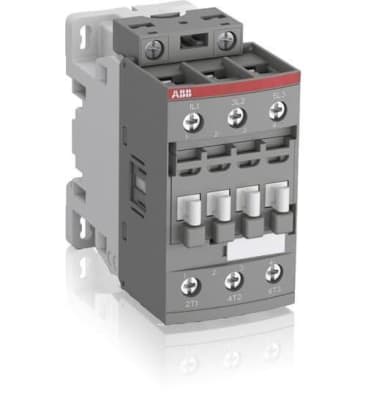

ABB AF30-30-00-13 Image 1

ABB AF30-30-00-13 CONTACTOR 3 POLE 25HP 600VAC

MFR Part #: AF30-30-00-13
SKU #: 1083177
Brand: ABB
UPC: 804325538800
ABB AF30-30-00-13 AF30 Contactor, 100 VAC, 250 VDC V Coil, 50 A, 3NO Contact, 3 Poles
For controlling 3-phase motors, non-inductive or slightly inductive loads
RoHS Compliant | cUL Listed | UL 508 | UL File No. E312527 | IEC/EN 60947-1, 60947-4-1 | CSA C22.2 No. 14 | CB Certified | CCC Certified | CE Certified | DNV Listed | EAC Certified | RINA Certified

ABB Contactor, Series: AF30, 100 VAC, 250 VDC Coil, 50 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 18.5 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 690 VAC Contact, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -60 to 80 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 86 mm D Dimensions

AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives and together with ABB wide product offering, an optimal configuration, every time.

Product Details

ABB Contactor, Series: AF30, 100 VAC, 250 VDC Coil, 50 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 18.5 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 690 VAC Contact, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -60 to 80 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 86 mm D Dimensions

AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives and together with ABB wide product offering, an optimal configuration, every time.

Attributes

Coil Voltage: 100 VAC, 250 VDC
Contact Configuration: 3NO
Contact Rating: 690 VAC
Contact Type: Non-Reversing
Country Of Origin: France
Dimensions: 86 mm H x 45 mm W x 86 mm D
Enclosure Type: IP20
Frequency Rating: 50/60 Hz
Maximum Load Current: 50 A
Mounting Type: DIN Rail
Number of Poles: 3
Operating Cycles: 3600 Cycles
Operating Temperature: -60 to 80 deg C
Series: AF30
Terminal Type: Screw
Wattage: 18.5 kW

Features

  • Non-reversing across the line contactor
  • Can manage large control voltage variations
  • Reduced panel energy consumption
  • Very distinct closing and opening
  • Built-in surge suppression
  • AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 control voltage ranges covering 24 to 500 VAC, 50/60 Hz and 20 to 500 VDC can manage large control voltage variations

Resources

Specification Sheet
