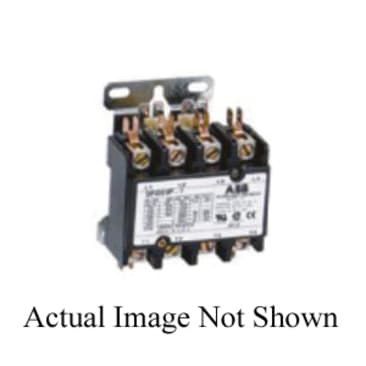

ABB DP20C3P-1 CONTACTOR DP 20A 3P COIL 120VAC
MFR Part #: DP20C3P-1
SKU #: 1086001
Brand: ABB
UPC: 888614035072
ABB DP20C3P-1 Non-Reversing Definite Purpose Contactor, 120 VAC V Coil, 20 A, 3NO Contact, 3 Poles
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and Welding Applications
Product Details
Attributes
Features
Resources
ABB Definite Purpose Contactor, Non-Reversing, 120 VAC Coil, 20 A Maximum Load Current, 1-1/2, 3, 7-1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2 Auxiliary Contacts, SZ 20 Size, Screw Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, DIN Rail Mounting, 2.98 in L x 2.41 in W x 3.39 in H Dimensions
Coil Power Rating:
1-1/2, 3, 7-1/2 hp
Coil Voltage:
120 VAC
Contact Configuration:
3NO
Dimensions:
2.98 in L x 2.41 in W x 3.39 in H
Enclosure Type:
NEMA 5/Open
Frequency Rating:
50/60 Hz
Maximum Load Current:
20 A
Mounting Type:
DIN Rail
Number of Auxiliary Contacts:
2
Number of Poles:
3
Operating Temperature:
130 deg C
Size:
SZ 20
Terminal Type:
Screw
Type:
Non-Reversing
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips® 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- 1-1/2 hp at 120 VAC 1-phase, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240/480/600 VAC 3-phase
Product Details
ABB Definite Purpose Contactor, Non-Reversing, 120 VAC Coil, 20 A Maximum Load Current, 1-1/2, 3, 7-1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2 Auxiliary Contacts, SZ 20 Size, Screw Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, DIN Rail Mounting, 2.98 in L x 2.41 in W x 3.39 in H Dimensions
Attributes
Coil Power Rating: 1-1/2, 3, 7-1/2 hp
Coil Voltage: 120 VAC
Contact Configuration: 3NO
Dimensions: 2.98 in L x 2.41 in W x 3.39 in H
Enclosure Type: NEMA 5/Open
Frequency Rating: 50/60 Hz
Maximum Load Current: 20 A
Mounting Type: DIN Rail
Number of Auxiliary Contacts: 2
Number of Poles: 3
Operating Temperature: 130 deg C
Size: SZ 20
Terminal Type: Screw
Type: Non-Reversing
Features
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips® 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- 1-1/2 hp at 120 VAC 1-phase, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240/480/600 VAC 3-phase
