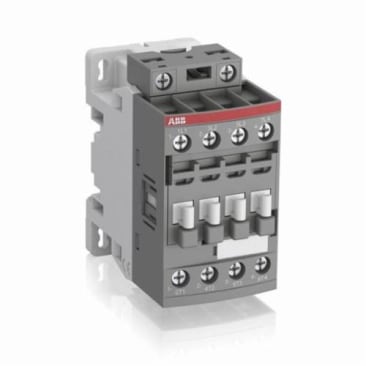

ABB AF09-40-00-13L 4P 20A 600V LIGHTING CONTACTOR

ABBLighting Contactor, Non-Reversing, 600 VAC Coil, 20 A Maximum Load Current, 4 Poles, 50/60 Hz, 4NO, Screw, 3600 Cycles Operating Cycles, -60 to 80 deg C Operating, 86 mm H x 45 mm W x 77 mm D

AF09 4-pole contactors are used for controlling power circuits up to 690 VAC and 440 VDC they are mainly used for controlling non-inductive or slightly inductive loads (ie resistance furnaces to ). AF to contactors include an electronic coil interface accepting a wide control voltage Uc min to Uc max. Only four coils cover control voltages between 24 to 500 V 50/60 Hz or 20 to 500 VDC AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF to series 4-pole contactors are of the block type design, main poles and auxiliary contact blocks. 4 NO main poles, front and side mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with annex L of IEC 60947-5-1 NC mirror contacts compliant with annex F of IEC 60947-4-1), control circuit: AC or DC operated.
