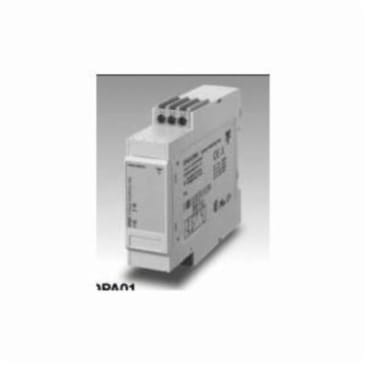

CARLO GAVAZZI DPA01CM44 Image 1

CARLO GAVAZZI DPA01CM44 3 PHASE LOSS & PHASE SEQUENCE

MFR Part #: DPA01CM44
SKU #: 1133782
Brand: Carlo Gavazzi
UPC: 8030960000000
Carlo Gavazzi DPA01CM44 Phase Monitoring Relay, 208 to 480 VAC, 8 A, SPDT Contact, 177 to 550 VAC V Coil
UL Listed | CSA Certified | CE Marked | RoHS Compliant | PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carlo Gavazzi Phase Monitoring Relay, Series: DPA01, 208 to 480 VAC, 8 A, 45 to 65 Hz, 177 to 550 VAC Coil, SPDT, DIN Rail Mount, L1/L2/L3 Terminal, LED, IP20

3-phase relay for detection of incorrect phase sequence, total and partial phase loss. Supply range from 208 to 690 VAC covered by two multivoltage relays. For mounting on DIN-rail or plug-in module. The device detects regenerated voltages up to 85% of the nominal voltage (phase-phase).

Product Details

Carlo Gavazzi Phase Monitoring Relay, Series: DPA01, 208 to 480 VAC, 8 A, 45 to 65 Hz, 177 to 550 VAC Coil, SPDT, DIN Rail Mount, L1/L2/L3 Terminal, LED, IP20

3-phase relay for detection of incorrect phase sequence, total and partial phase loss. Supply range from 208 to 690 VAC covered by two multivoltage relays. For mounting on DIN-rail or plug-in module. The device detects regenerated voltages up to 85% of the nominal voltage (phase-phase).

Attributes

Amperage Rating8 A
Coil Voltage177 to 550 VAC
Contact ConfigurationSPDT
Display TypeLED
Enclosure TypeIP20
Frequency Rating45 to 65 Hz
Mounting TypeDIN Rail
SeriesDPA01
Terminal TypeL1/L2/L3
Voltage Rating208 to 480 VAC

Features

  • Detect when all 3 phases are present and have the correct sequence
  • Measure their own power supply
  • LED indication for relay and power supply ON
