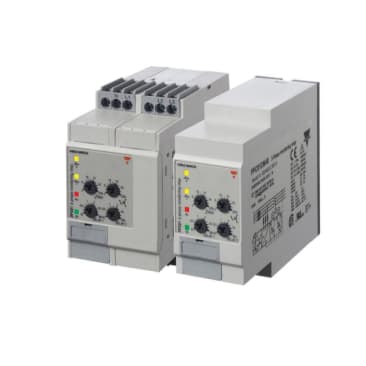

CARLO GAVAZZI DPC01DM23 Image 1

CARLO GAVAZZI DPC01DM23 3PH MON RELAY 208-240VAC DIN RAIL

MFR Part #: DPC01DM23
SKU #: 1016689
Brand: Carlo Gavazzi
UPC: 8030960000000
Carlo Gavazzi DPC01 Series DPC01DM23 Phase Monitoring Relay, 208 to 240 VAC Input, 8 A, 9 VA, 8 A Contact
For wide range of applications lifts, escalators, HVAC, material handling, pumps, compressors and mobile machinery installations

Carlo Gavazzi Phase Monitoring Relay, Series: DPC01 Series, 208 to 240 VAC Input, 8 A, 9 VA, 50/60 Hz, 2.5/4 kV Insulation Voltage, SPDT, 8 A Contact, 1 Pole, DIN Rail Mount, Screw Terminal, 10000 cycles Operating Cycles, IP20 IP Rating, Noryl/Polyamide 66 Body, Light Gray, -20 to 60 deg C, 3.15 in Height, 1.77 in Width, 3.92 in D

DPC01 and PPC01 are 3 ph mains monitoring relays. They operate on 3P and 3P+N systems, monitoring phase loss and phase sequence, overvoltage and under voltage, voltage asymmetry and tolerance. Power supply provided by the monitored mains. 2 independent delay functions, up to 30 s, for over/under voltage and asymmetry/tolerance alarms.

Product Details

Carlo Gavazzi Phase Monitoring Relay, Series: DPC01 Series, 208 to 240 VAC Input, 8 A, 9 VA, 50/60 Hz, 2.5/4 kV Insulation Voltage, SPDT, 8 A Contact, 1 Pole, DIN Rail Mount, Screw Terminal, 10000 cycles Operating Cycles, IP20 IP Rating, Noryl/Polyamide 66 Body, Light Gray, -20 to 60 deg C, 3.15 in Height, 1.77 in Width, 3.92 in D

DPC01 and PPC01 are 3 ph mains monitoring relays. They operate on 3P and 3P+N systems, monitoring phase loss and phase sequence, overvoltage and under voltage, voltage asymmetry and tolerance. Power supply provided by the monitored mains. 2 independent delay functions, up to 30 s, for over/under voltage and asymmetry/tolerance alarms.

Attributes

Amperage Rating: 8 A
Body Color: Light Gray
Body Material: Noryl/Polyamide 66
Contact Configuration: SPDT
Contact Rating: 8 A
Depth: 3.92 in
Frequency Rating: 50/60 Hz
Height: 3.15 in
Input Voltage: 208 to 240 VAC
Insulation Voltage: 2.5/4 kV
IP Rating: IP20
Mounting Type: DIN Rail
Number of Poles: 1
Operating Cycles: 10000 cycles
Power Rating: 9 VA
Series: DPC01 Series
Temperature Rating: -20 to 60 deg C
Terminal Type: Screw
Width: 1.77 in

Features

  • Wide voltages and frequency ranges
  • Adjustable voltage levels, asymmetry, tolerance and time delay
  • Output and status LED indication
  • 2-mounting versions
  • Adjustable power-on delay
  • Ultra-high harmonic immunity

Resources

Specification Sheet
