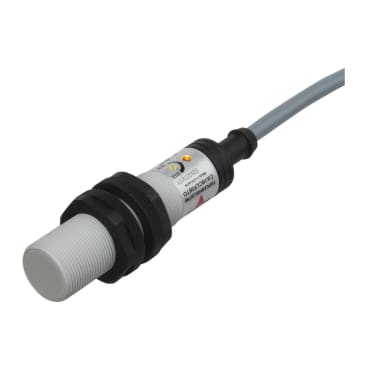

CARLO GAVAZZI CA18CLF08TO PROX SENSOR M18 8MM FLUSH MOUNT

Name: CARLO GAVAZZI CA18CLF08TO PROX SENSOR M18 8MM FLUSH MOUNT
Brand: Carlo Gavazzi
SKU: 1123874
Availability: OutOfStock

MFR Part #: CA18CLF08TO

SKU #: 1123874

Brand: Carlo Gavazzi

UPC: 5709870000000

Carlo Gavazzi CA18CLF08TO Proximity Sensor, 2-Wire SCR-NO Output, 20 to 250 VAC

For detection not only of the wood pellets in pellet burners but also the density of the wood pellets

Product Details
Attributes
Features
Resources

Carlo Gavazzi Proximity Sensor, Series: CA, 8 m Sensing Distance, <=5 % Accuracy, 2-Wire SCR-NO Output, 20 to 250 VAC, 10 mA, 10 Hz Frequency Response, NEMA 1/2/12/IP67 Enclosure, -13 to 176 deg F, Flush Mounting, Polybutylene Terephthalate, Environmental Conditions: -40 to 185 deg F Storage Temperature

Capacitive proximity switches with either sensing distance 8 mm flush mounted in metal or sensing distance 12 mm non-flush mounted. 2-wire AC output with make (NO) or break (NC) switching. Gray M18 polyester housing with 2 m PVC cable or M12 plug. Ideal for use in level and plastic machinery applications.

Product Details

Carlo Gavazzi Proximity Sensor, Series: CA, 8 m Sensing Distance, <=5 % Accuracy, 2-Wire SCR-NO Output, 20 to 250 VAC, 10 mA, 10 Hz Frequency Response, NEMA 1/2/12/IP67 Enclosure, -13 to 176 deg F, Flush Mounting, Polybutylene Terephthalate, Environmental Conditions: -40 to 185 deg F Storage Temperature

Capacitive proximity switches with either sensing distance 8 mm flush mounted in metal or sensing distance 12 mm non-flush mounted. 2-wire AC output with make (NO) or break (NC) switching. Gray M18 polyester housing with 2 m PVC cable or M12 plug. Ideal for use in level and plastic machinery applications.

Attributes

Accuracy: <=5 %

Amperage Rating: 10 mA

Enclosure Type: NEMA 1/2/12/IP67

Environmental Conditions: -40 to 185 deg F Storage Temperature

Frequency Response: 10 Hz

Material: Polybutylene Terephthalate

Mounting Type: Flush

Output Type: 2-Wire SCR-NO

Sensing Distance: 8 m

Series: CA Series

Temperature Rating: -13 to 176 deg F

Voltage Rating: 20 to 250 VAC

Features

Featuring TRIPLESHIELD™ sensor protection
Rated operational voltage - 20-250 VAC
Adjustable sensing distance 3 to 8 mm or 3 to 12 mm
Make and break switching function
LED indication
High noise immunity
Plug and cable versions
DC versions in the same housing
Capacitive sensor
Cylindrical housing with threaded barrel
18 mm housing diameter
