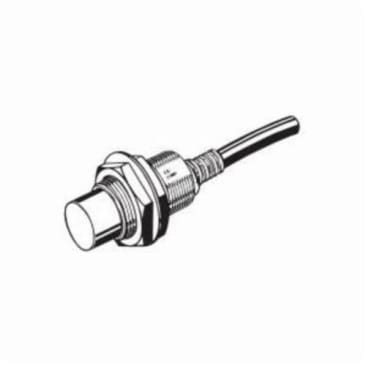

ELECTROSONIC E2E-X10MF1-M1 OMRON INDCT PROX SENSOR 10MM
MFR Part #:Â E2E-X10MF1-M1
SKU #:Â 1115202
Brand:Â OMRON
UPC:Â 999999283474
OMRON E2E-X10MF1-M1 Unshielded Inductive Sensor, Inductive, PNP Output, 1NO Contact, 12/24 VDC
RoHS Compliant
Product Details
Attributes
Features
Resources
OMRON Inductive Sensor, Unshielded, Series: E2E, Inductive Sensing Method, 10 mm Sensing Distance, 0 to 8 mm Measuring, PNP Output, 1NO Contact Configuration, 12/24 VDC, 200 mA, 0.2 kHz Frequency Response, M12/Cable Connection, M18 Size, IP67 Enclosure, -40 to 85 deg C, Panel Mounting, Brass
Amperage Rating:
200 mA
Connection Type:
M12/Cable
Contact Configuration:
1NO
Enclosure Type:
IP67
Frequency Response:
.2 kHz
Material:
Brass
Measuring Range:
0 to 8 mm
Mounting Type:
Panel
Output Type:
PNP
Sensing Distance:
10 mm
Sensing Method:
Inductive
Series:
E2E
Size:
M18
Temperature Rating:
-40 to 85 deg C
Type:
Unshielded
Voltage Rating:
12/24 VDC
- Standard sensors for detecting ferrous metals
- Wide array of variations
- Operation indicator (red)
- Surge suppressor, output short-cut, power supply reverse polarity protection
- Standard frequency
- PBT sensing surface, brass-nickel plated clamping nut, iron zinc plating toothed washer
- PNP voltage-current output
- Current consumption of 13 mA max
- Cylindrical threaded
- Nickel plated brass material
Product Details
OMRON Inductive Sensor, Unshielded, Series: E2E, Inductive Sensing Method, 10 mm Sensing Distance, 0 to 8 mm Measuring, PNP Output, 1NO Contact Configuration, 12/24 VDC, 200 mA, 0.2 kHz Frequency Response, M12/Cable Connection, M18 Size, IP67 Enclosure, -40 to 85 deg C, Panel Mounting, Brass
Attributes
Amperage Rating:Â 200 mA
Connection Type:Â M12/Cable
Contact Configuration:Â 1NO
Enclosure Type:Â IP67
Frequency Response:Â .2 kHz
Material:Â Brass
Measuring Range:Â 0 to 8 mm
Mounting Type:Â Panel
Output Type:Â PNP
Sensing Distance:Â 10 mm
Sensing Method:Â Inductive
Series:Â E2E
Size:Â M18
Temperature Rating:Â -40 to 85 deg C
Type:Â Unshielded
Voltage Rating:Â 12/24 VDC
Features
- Standard sensors for detecting ferrous metals
- Wide array of variations
- Operation indicator (red)
- Surge suppressor, output short-cut, power supply reverse polarity protection
- Standard frequency
- PBT sensing surface, brass-nickel plated clamping nut, iron zinc plating toothed washer
- PNP voltage-current output
- Current consumption of 13 mA max
- Cylindrical threaded
- Nickel plated brass material
