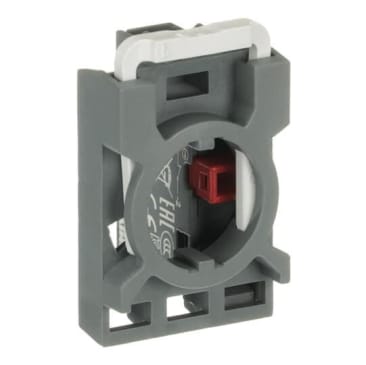

ABB MCBH-01 1 NC CONTACT BLOCK
MFR Part #:Â MCBH-01
SKU #:Â 1028668
Brand:Â ABB
UPC:Â 662019229485
ABB MCBH-01 Modular Non-illuminated Contact Block With 3-Position Holder, 22 mm, 1NC Contact, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact
(3) Position Holders
For modular pilot devices
RoHS Compliant | CE Marked
Product Details
Attributes
Features
Resources
ABB Contact Block, Modular Non-illuminated, Series: MCBH, 22 mm Size, 1NC Contact Configuration, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, 1 Contacts, Polycarbonate Block, Pushbutton/Selector Switch Operator, NEMA 1/3R/4/4X/12/13 NEMA Rating, IP20 Enclosure, Screw Terminal, Front Mounting, 0.048 mm H x 0.03 mm W x 0.036 mm D Dimensions
Block Material:
Polycarbonate
Contact Configuration:
1NC
Contact Rating:
6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC
Contacts:
1
Country Of Origin:
Sweden
Dimensions:
0.048 mm H x 0.03 mm W x 0.036 mm D
Enclosure Type:
IP20
Mounting Type:
Front
NEMA Rating:
NEMA 1/3R/4/4X/12/13
Operator Type:
Pushbutton/Selector Switch
Series:
MCBH
Size:
22 mm
Terminal Type:
Screw
Type:
Modular Non-illuminated
- 8 A at 24/127 VAC, 6 A at 220/240 VAC operational current rating
- 5 A at 24 VDC, 1.1 A at 125 VDC operational current rating
Product Details
ABB Contact Block, Modular Non-illuminated, Series: MCBH, 22 mm Size, 1NC Contact Configuration, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, 1 Contacts, Polycarbonate Block, Pushbutton/Selector Switch Operator, NEMA 1/3R/4/4X/12/13 NEMA Rating, IP20 Enclosure, Screw Terminal, Front Mounting, 0.048 mm H x 0.03 mm W x 0.036 mm D Dimensions
Attributes
Block Material:Â Polycarbonate
Contact Configuration:Â 1NC
Contact Rating:Â 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC
Contacts:Â 1
Country Of Origin:Â Sweden
Dimensions:Â 0.048 mm H x 0.03 mm W x 0.036 mm D
Enclosure Type:Â IP20
Mounting Type:Â Front
NEMA Rating:Â NEMA 1/3R/4/4X/12/13
Operator Type:Â Pushbutton/Selector Switch
Series:Â MCBH
Size:Â 22 mm
Terminal Type:Â Screw
Type:Â Modular Non-illuminated
Features
- 8 A at 24/127 VAC, 6 A at 220/240 VAC operational current rating
- 5 A at 24 VDC, 1.1 A at 125 VDC operational current rating
