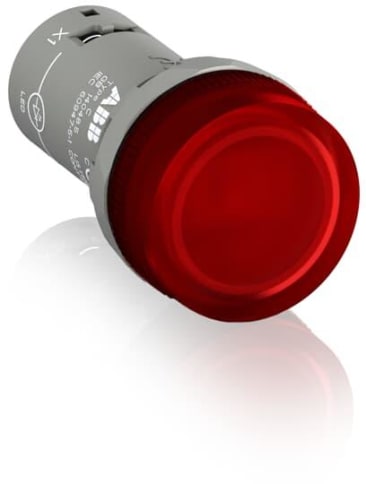

ABB CL2-513R Image 1

ABB CL2-513R 22MM LED PILOT LIGHT 110-130VAC RED

MFR Part #: CL2-513R
SKU #: 1192198
Brand: ABB
UPC: 888614470156
ABB CL2-513R Compact CL2 Illuminated Pilot Light, 110 to 130 VAC, 15 to 17 mA, Flat Round Glass Lens, Panel Mount
This product may be subject to ecological fees.
For use with control panels
CE Certified | CSA C22.2 No. 14 Approved | CCC Marked | cULus Listed | EN 50013 | IEC/EN 60947-1/60947-5-1/60947-5-5/60073/60529 | UL 508

ABB Illuminated Pilot Light, Series: Compact CL2, 110 to 130 VAC, 15 to 17 mA, Flat Round Glass Lens, Red Lens, Polycarbonate Lens, LED Lamp, Bezel/Housing: Plastic/Polycarbonate, 22 mm, 50000 hr Average Life, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP66/IP67/IP69K/IP20, Panel Mount, Environmental Conditions: -25 to 70 deg C Temperature

The exciting new family of compact pilot devices is establishing new standards of performance no matter what your application, the new range will improve your product and StreamLine® your Cost. The all-in-one design makes everything easier, the entire functionality is condensed into one unit. You never need to match items together and each item has a single ordering number. The compact range includes push buttons selector switches, emergency stops and pilot lights. These work in perfect harmony with the extensive modular range since the front design is identical.

Product Details

ABB Illuminated Pilot Light, Series: Compact CL2, 110 to 130 VAC, 15 to 17 mA, Flat Round Glass Lens, Red Lens, Polycarbonate Lens, LED Lamp, Bezel/Housing: Plastic/Polycarbonate, 22 mm, 50000 hr Average Life, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP66/IP67/IP69K/IP20, Panel Mount, Environmental Conditions: -25 to 70 deg C Temperature

The exciting new family of compact pilot devices is establishing new standards of performance no matter what your application, the new range will improve your product and StreamLine® your Cost. The all-in-one design makes everything easier, the entire functionality is condensed into one unit. You never need to match items together and each item has a single ordering number. The compact range includes push buttons selector switches, emergency stops and pilot lights. These work in perfect harmony with the extensive modular range since the front design is identical.

Attributes

Amperage Rating: 15 to 17 mA
Average Life: 50000 hr
Bezel/Housing: Plastic/Polycarbonate
Country Of Origin: China
Enclosure Type: NEMA 1/3R/4/4X/12/13/IP66/IP67/IP69K/IP20
Environmental Conditions: -25 to 70 deg C Temperature
Lamp Type: LED
Lens Color: Red
Lens Material: Polycarbonate
Lens Type: Flat Round Glass
Mounting Type: Panel
Series: Compact CL2
Size: 22 mm
Terminal Type: Screw
Voltage Rating: 110 to 130 VAC

Features

  • All-in-one design
  • Same front as modular range, can be combined with modular range for additional flexibility
  • Reliable and durable design
  • Fast mounting
  • Low built-in depth of 42mm
  • Robust design
  • Built in LED as an option
  • Reduced stock keeping
  • Integrated LED bulb has a function built-in to cut leakage currents
  • 625 Nm wavelength
  • 20 V anti-inductive voltage
  • 85 lx illumination
