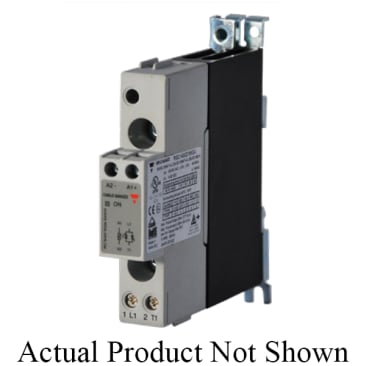

CARLO GAVAZZI RGC1A60D15KGU Image 1

CARLO GAVAZZI RGC1A60D15KGU 1P-SSC-DC IN-ZC 600V 15A 1200V

MFR Part #: RGC1A60D15KGU
SKU #: 1119956
Brand: Carlo Gavazzi
UPC: 5350040000000
Carlo Gavazzi RGC1A60D15KGU Solid State Relay With Integrated Heat Sink, 20 A, 600 V Coil
Plastic Injection Machines, Extrusion Machines, Blow Molding Machines, Thermoformers, Dryers, Electrical Ovens, Fryers, Shrink Tunnels, Air Handling Units, Sterilization Equipment, Climatic Chambers, Ovens and Furnaces and Ambient Heating Applications

Carlo Gavazzi Solid State Relay, Series: RGC, 20 A, 45 to 65 Hz Frequency, 600 V Coil, 1 Pole, DIN Rail/Panel Mounting, Box/Screw Terminal, IP20 Enclosure, -40 to 176 deg F, 0.7 in W x 3.88 in D x 4.33 in H Dimensions

This slimline range of solid state contactors is an evolution of solid state switches for which Carlo Gavazzi is very well known. The RG solid state contactors present a unique opportunity for panel space savings thanks to their very slim footprint. The RGC is the ready-to-use range that is provided with an integrated heat sink. The smallest footprint occupies only a width of 17.5 mm with ratings up to 25 A AC. The RGC output is protected against overvoltages by means of an integrated varistor. Control ON indication is provided through a green LED.

Product Details

Carlo Gavazzi Solid State Relay, Series: RGC, 20 A, 45 to 65 Hz Frequency, 600 V Coil, 1 Pole, DIN Rail/Panel Mounting, Box/Screw Terminal, IP20 Enclosure, -40 to 176 deg F, 0.7 in W x 3.88 in D x 4.33 in H Dimensions

This slimline range of solid state contactors is an evolution of solid state switches for which Carlo Gavazzi is very well known. The RG solid state contactors present a unique opportunity for panel space savings thanks to their very slim footprint. The RGC is the ready-to-use range that is provided with an integrated heat sink. The smallest footprint occupies only a width of 17.5 mm with ratings up to 25 A AC. The RGC output is protected against overvoltages by means of an integrated varistor. Control ON indication is provided through a green LED.

Attributes

Amperage Rating: 20 A
Coil Voltage: 600 V
Dimensions: 0.7 in W x 3.88 in D x 4.33 in H
Enclosure Type: IP20
Frequency Rating: 45 to 65 Hz
Mounting Type: DIN Rail/Panel
Number of Poles: 1
Series: RGC
Temperature Rating: -40 to 176 deg F
Terminal Type: Box/Screw

Features

  • Ratings up to 660 VAC, 85 A at TA 40 deg C
  • Up to 18000 A2s for I2t for protection coordination with MCBs
  • 100 kA short circuit current rating according to UL 508
  • Conformance to railway standards
  • Zero cross switching
  • 42 to 660 VAC, 1200 Vp rated voltage
  • 3 to 32 VDC control voltage
  • Screw connection for control terminals
  • Box clamp connection for power terminals
  • SSR configuration
