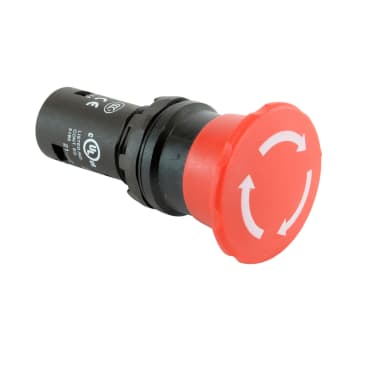

ABB CE4T-10R-11 40MM TW-REL 1NO & 1NC RED

MFR Part #: CE4T-10R-11
SKU #: 1271881
Brand: ABB
UPC: 662019201931
ABB CE4T-10R-11 Compact Non-Illuminated Pushbutton, 0.03 mm H x 0.04 mm W x 0.073 mm D, 1NC-1NO Contact, Push-Lock Twist-Release Operator, Red/Black
Control Panels
RoHS Compliant | CE | CSA Certified | cULus | UL Listed

ABB Non-Illuminated Pushbutton, Compact, Series: CE4T, 0.03 mm H x 0.04 mm W x 0.073 mm D Size, 1NC-1NO Contact Configuration, 10 A at 250 VAC/VDC Contact, Push-Lock Twist-Release Operator, Legend: Emergency Stop, Bezel/Housing: Plastic, Mushroom Head Actuator, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP66/IP20 Enclosure, Panel Mounting, Plastic, Red/Black, Environmental Conditions: -25 to 70 deg C Operating Temperature

Product Details

ABB Non-Illuminated Pushbutton, Compact, Series: CE4T, 0.03 mm H x 0.04 mm W x 0.073 mm D Size, 1NC-1NO Contact Configuration, 10 A at 250 VAC/VDC Contact, Push-Lock Twist-Release Operator, Legend: Emergency Stop, Bezel/Housing: Plastic, Mushroom Head Actuator, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP66/IP20 Enclosure, Panel Mounting, Plastic, Red/Black, Environmental Conditions: -25 to 70 deg C Operating Temperature

Attributes

Country Of Origin: China
Actuator: Mushroom Head
Bezel/Housing: Plastic
Color: Red/Black
Contact Configuration: 1NC-1NO
Contact Rating: 10 A at 250 VAC/VDC
Enclosure Type: NEMA 1/3R/4/4X/12/13/IP66/IP20
Environmental Conditions: -25 to 70 deg C Operating Temperature
Legend: Emergency Stop
Material: Plastic
Mounting Type: Panel
Operator Type: Push-Lock Twist-Release
Series: CE4T
Size: 0.03 mm H x 0.04 mm W x 0.073 mm D
Terminal Type: Screw
Type: Compact

Features

  • 0.5 million mechanical durability
  • 50/60 Hz frequency rating
  • 24/127 VAC, 1.5 A, 220/240 VAC, 1 A AC current rating
  • 24 VAC/0.3 A, 125 VAC/0.2 A DC current rating
  • Long lifetime thanks to self-cleaning contacts
  • Compact range provides extremely reliable IP66, IP67 and IP69K products in just one ordering code simplifying ordering and administration
  • Reduce installation size with compact range
  • High chemical resistance polycarbonate
  • Fingersafe screw terminal
