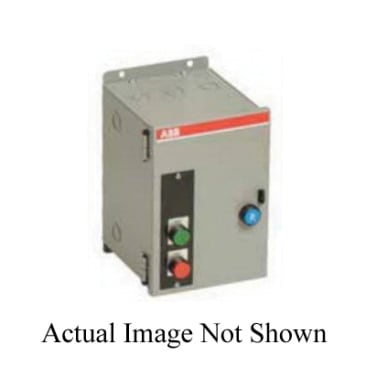

ABB PS-AFAX13 SYSTEM PROS DOL 1P 13.8A AC3 TYPE 1 STARTER
MFR Part #: PS-AFAX13
SKU #: 1280396
Brand: ABB
UPC: 888614477407
ABB PS-AFAX13 System proS Non-Combination NEMA Starter, 100 to 250 VAC V Coil, Non-Reversing Action, 1 Pole, NEMA 1 Enclosure
Product Details
Attributes
Features
Resources
ABB NEMA Starter, Non-Combination, Series: System proS, 120 VAC, 13.8 A, 50/60 Hz Frequency, 3/4 hp Motor, 100 to 250 VAC Coil, 1 Pole, 1 ph, Screw Connection, Non-Reversing Action, Class 10 Adjustable Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 1 Enclosure, Metal, -20 to 40 deg C Operating, 10 in H x 6-3/4 in W x 6-1/2 in D Dimensions
Action:
Non-Reversing
Amperage Rating:
13.8 A
Auxiliary Contact Rating:
10 A at 600 VAC, 5 A at 600 VDC
Coil Voltage:
100 to 250 VAC
Connection Type:
Screw
Dimensions:
10 in H x 6-3/4 in W x 6-1/2 in D
Enclosure Type:
NEMA 1
Frequency Rating:
50/60 Hz
Material:
Metal
Motor Power:
3/4 hp
Number of Poles:
1
Operating Temperature:
-20 to 40 deg C
Overload Relay:
Class 10 Adjustable
Phase:
1
Series:
System proS
Type:
Non-Combination
Voltage Rating:
120 VAC
- Across the line (DOL) and 2-speed starters
- Compact space saving design
- Pre-wired pilot device and control transformer kits allow for quick and easy field modification and installation
- Captive terminal screws
- Touch safe design - all connection terminals are protected against accidental touch
- External connections - all starters include necessary terminal blocks and wiring to control the starter by an external maintained contact when used with the appropriate pilot device kit
- 3/4 hp at 120 VAC 1 phase maximum motor hp rating
Product Details
ABB NEMA Starter, Non-Combination, Series: System proS, 120 VAC, 13.8 A, 50/60 Hz Frequency, 3/4 hp Motor, 100 to 250 VAC Coil, 1 Pole, 1 ph, Screw Connection, Non-Reversing Action, Class 10 Adjustable Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 1 Enclosure, Metal, -20 to 40 deg C Operating, 10 in H x 6-3/4 in W x 6-1/2 in D Dimensions
Attributes
Action: Non-Reversing
Amperage Rating: 13.8 A
Auxiliary Contact Rating: 10 A at 600 VAC, 5 A at 600 VDC
Coil Voltage: 100 to 250 VAC
Connection Type: Screw
Dimensions: 10 in H x 6-3/4 in W x 6-1/2 in D
Enclosure Type: NEMA 1
Frequency Rating: 50/60 Hz
Material: Metal
Motor Power: 3/4 hp
Number of Poles: 1
Operating Temperature: -20 to 40 deg C
Overload Relay: Class 10 Adjustable
Phase: 1
Series: System proS
Type: Non-Combination
Voltage Rating: 120 VAC
Features
- Across the line (DOL) and 2-speed starters
- Compact space saving design
- Pre-wired pilot device and control transformer kits allow for quick and easy field modification and installation
- Captive terminal screws
- Touch safe design - all connection terminals are protected against accidental touch
- External connections - all starters include necessary terminal blocks and wiring to control the starter by an external maintained contact when used with the appropriate pilot device kit
- 3/4 hp at 120 VAC 1 phase maximum motor hp rating
