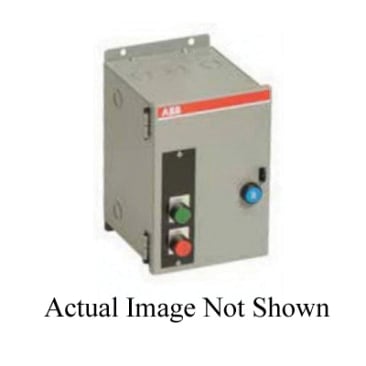

ABB PS-AFRX13 REVERSING 3P 9A EEMAC 1 STARTER
MFR Part #: PS-AFRX13
SKU #: 1134167
Brand: ABB
UPC: 888614497627
ABB PS-AFRX13 System proS Non-Combination NEMA Starter, 100 to 250 VAC V Coil, Reversing Action, 3 Poles, NEMA 1 Enclosure
Product Details
Attributes
Features
Resources
ABB NEMA Starter, Non-Combination, Series: System proS, 600 VAC, 9 A, 50/60 Hz Frequency, 7-1/2 hp Motor, 100 to 250 VAC Coil, 3 Pole, 3 ph, Screw Connection, Reversing Action, Class 10 Adjustable Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 1 Enclosure, Metal, -20 to 40 deg C Operating, 10 in H x 6-3/4 in W x 6-1/2 in D Dimensions
Action:
Reversing
Amperage Rating:
9 A
Auxiliary Contact Rating:
10 A at 600 VAC, 5 A at 600 VDC
Coil Voltage:
100 to 250 VAC
Connection Type:
Screw
Dimensions:
10 in H x 6-3/4 in W x 6-1/2 in D
Enclosure Type:
NEMA 1
Frequency Rating:
50/60 Hz
Material:
Metal
Motor Power:
7-1/2 hp
Number of Poles:
3
Operating Temperature:
-20 to 40 deg C
Overload Relay:
Class 10 Adjustable
Phase:
3
Series:
System proS
Type:
Non-Combination
Voltage Rating:
600 VAC
- Across the line (DOL) and 2-speed starters
- Compact space saving design
- Pre-wired pilot device and control transformer kits allow for quick and easy field modification and installation
- Captive terminal screws
- Touch safe design - all connection terminals are protected against accidental touch
- External connections - all starters include necessary terminal blocks and wiring to control the starter by an external maintained contact when used with the appropriate pilot device kit
- 2 hp at 200/208 VAC, 2 hp at 220/240 VAC, 5 hp at 460/480 VAC, 7-1/2 hp at 575/600 VAC 3 ph maximum motor hp rating
Product Details
ABB NEMA Starter, Non-Combination, Series: System proS, 600 VAC, 9 A, 50/60 Hz Frequency, 7-1/2 hp Motor, 100 to 250 VAC Coil, 3 Pole, 3 ph, Screw Connection, Reversing Action, Class 10 Adjustable Overload Relay, 10 A at 600 VAC, 5 A at 600 VDC Auxiliary, NEMA 1 Enclosure, Metal, -20 to 40 deg C Operating, 10 in H x 6-3/4 in W x 6-1/2 in D Dimensions
Attributes
Action: Reversing
Amperage Rating: 9 A
Auxiliary Contact Rating: 10 A at 600 VAC, 5 A at 600 VDC
Coil Voltage: 100 to 250 VAC
Connection Type: Screw
Dimensions: 10 in H x 6-3/4 in W x 6-1/2 in D
Enclosure Type: NEMA 1
Frequency Rating: 50/60 Hz
Material: Metal
Motor Power: 7-1/2 hp
Number of Poles: 3
Operating Temperature: -20 to 40 deg C
Overload Relay: Class 10 Adjustable
Phase: 3
Series: System proS
Type: Non-Combination
Voltage Rating: 600 VAC
Features
- Across the line (DOL) and 2-speed starters
- Compact space saving design
- Pre-wired pilot device and control transformer kits allow for quick and easy field modification and installation
- Captive terminal screws
- Touch safe design - all connection terminals are protected against accidental touch
- External connections - all starters include necessary terminal blocks and wiring to control the starter by an external maintained contact when used with the appropriate pilot device kit
- 2 hp at 200/208 VAC, 2 hp at 220/240 VAC, 5 hp at 460/480 VAC, 7-1/2 hp at 575/600 VAC 3 ph maximum motor hp rating
