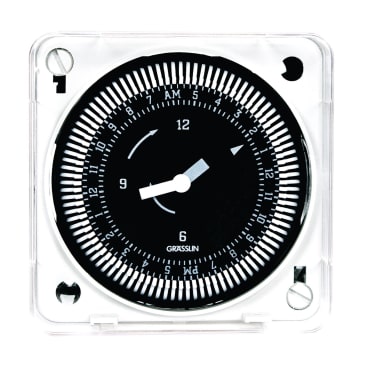

INTERMATIC MIL72ESTUZ-120 Image 1

INTERMATIC MIL72ESTUZ-120 24HR/7DAY DIAL UNIV TIME SWITCH

MFR Part #: MIL72ESTUZ-120
SKU #: 1109536
Brand: Intermatic®
UPC: 0078275153448
Intermatic® Grasslin® MIL72ESTUZ-120 Synchronous Drive Electromechanical Timer Module With Dust Cover, 15 min to 24 hr Setting, 120 VAC, 1 hp, 2 hp, 1NO-1NC 1SPDT Contact, 1 Poles
1 Year Limited
General Purpose, Agricultural Facilities, Commercial, Lighting Control, HVACR, Pumps, Motors, Fan Controls, Access Controls, OEM, Indoor/Outdoor, HVACR, Boiler, Commercial Refrigeration, Hydroponic Systems, Aerobic Wastewater Treatment Systems, Boilers, Generator Exercising

Intermatic® Grasslin® Electromechanical Timer Module, Synchronous Drive, Series: MIL72, Operation Mode: 24 hr, 120 VAC, 21 A, 1 hp, 2 hp, 1 Pole, 1 Channels, 1NO-1NC 1SPDT Contact Form, 15 min to 24 hr Time Setting, Analog Display, 1/4 in Quick-Connect Electrical Connections, -40 to 185 deg F, Flush Mounting, 2.83 in L x 2.83 in W x 2.6 in H

The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12 to 24 VAC/VDC, 120 or 208/240 VAC 1-Phase applications.

Product Details

Intermatic® Grasslin® Electromechanical Timer Module, Synchronous Drive, Series: MIL72, Operation Mode: 24 hr, 120 VAC, 21 A, 1 hp, 2 hp, 1 Pole, 1 Channels, 1NO-1NC 1SPDT Contact Form, 15 min to 24 hr Time Setting, Analog Display, 1/4 in Quick-Connect Electrical Connections, -40 to 185 deg F, Flush Mounting, 2.83 in L x 2.83 in W x 2.6 in H

The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12 to 24 VAC/VDC, 120 or 208/240 VAC 1-Phase applications.

Attributes

Amperage Rating: 21 A
Contact Form: 1NO-1NC 1SPDT
Dimensions: 2.83 in L x 2.83 in W x 2.6 in H
Display Type: Analog
Electrical Connections: 1/4 in Quick-Connect
Horsepower: 1 hp, 2 hp
Mounting Type: Flush
Number of Channels: 1
Number of Poles: 1
Operation Mode: 24 hr
Series: MIL72
Temperature Rating: -40 to 185 deg F
Time Setting: 15 min to 24 hr
Type: Synchronous Drive
Voltage Rating: 120 VAC

Features

  • 21 A SPDT switch
  • Synchronous drive or quartz drive (Q Models) with self-recharging battery backup
  • Captive trippers with 15 min intervals
  • Available with or without override
  • True clock face, easy-to-set
  • Surface/DIN rail or flush mount
  • Clear plastic dust cover
  • Compact size

Resources

Specification Sheet
