INTERMATIC EI210W 10/20/30/60 MIN ELECT COUNTDOWN TIMER WH
MFR Part #:Â EI210W
SKU #:Â 1031330
Brand: Intermatic®
UPC:Â 078275095236

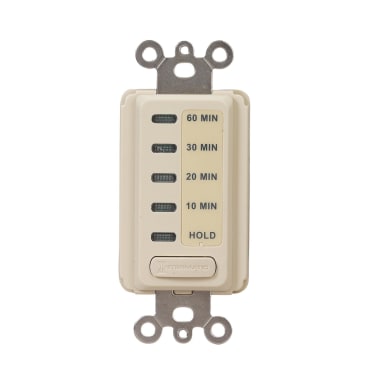

Intermatic® EI210W EI200 Auto Shut-Off In-Wall Electronic Countdown Timer, 10/20/30/60 min Setting, 120 VAC, 1/2 hp, 1NO/SPST Contact, 1 Poles
1 Year
Indoor, CFLs Lighting, LED Lighting, Fans, HVACR, Bathroom Fans, Spas, Hot Tubs, Storage Closets and Garage Lights Applications
cULus Listed | HVACR
Product Details
Attributes
Features
Resources
Intermatic® Electronic Countdown Timer, Auto Shut-Off In-Wall, Series: EI200, Operation Mode: 60 min, 120 VAC, 15 A, 1/2 hp, 1 Pole, 1NO/SPST Contact Form, 10/20/30/60 min Time Setting, 32 to 122 deg F, Wall Mounting, 2.79 in H x 1.75 in W x 1.44 in D Dimensions
Amperage Rating:
15 A
Contact Form:
1NO/SPST
Country Of Origin:
China
Dimensions:
2.79 in H x 1.75 in W x 1.44 in D
Horsepower:
1/2 hp
Mounting Type:
Wall
Number of Poles:
1
Operation Mode:
60 min
Series:
EI200
Temperature Rating:
32 to 122 deg F
Time Setting:
10/20/30/60 min
Type:
Auto Shut-Off In-Wall
Voltage Rating:
120 VAC
- No programming required
- Single-button time selection, with some models having a HOLD mode, for continuous ON operation
- Replaces single-pole switches in a variety of applications
- Incandescent/fluorescent/CFL/LED compatible
- Requires neutral connection
Product Details
Intermatic® Electronic Countdown Timer, Auto Shut-Off In-Wall, Series: EI200, Operation Mode: 60 min, 120 VAC, 15 A, 1/2 hp, 1 Pole, 1NO/SPST Contact Form, 10/20/30/60 min Time Setting, 32 to 122 deg F, Wall Mounting, 2.79 in H x 1.75 in W x 1.44 in D Dimensions
Attributes
Amperage Rating:Â 15 A
Contact Form:Â 1NO/SPST
Country Of Origin:Â China
Dimensions:Â 2.79 in H x 1.75 in W x 1.44 in D
Horsepower:Â 1/2 hp
Mounting Type:Â Wall
Number of Poles:Â 1
Operation Mode:Â 60 min
Series:Â EI200
Temperature Rating:Â 32 to 122 deg F
Time Setting:Â 10/20/30/60 min
Type:Â Auto Shut-Off In-Wall
Voltage Rating:Â 120 VAC
Features
- No programming required
- Single-button time selection, with some models having a HOLD mode, for continuous ON operation
- Replaces single-pole switches in a variety of applications
- Incandescent/fluorescent/CFL/LED compatible
- Requires neutral connection
