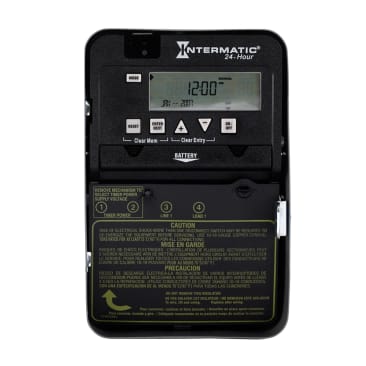

INTERMATIC ET1105C Image 1

INTERMATIC ET1105C 24-HOUR 30 AMP SPST ELECTRONIC TIMESWITCH

MFR Part #: ET1105C
SKU #: 1055617
Brand: Intermatic®
UPC: 078275109933
Intermatic® ET1105C ET1100 Electronic Timer Switch, 1 min to 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO/SPST Contact, 1 Poles
Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control and Various Other Electrical Loads, Indoor, HVACR and Industrial Applications
cCSAus Certified | California TITLE 24 Compliant | HVACR | Title CA 20 Listed

Intermatic® Electronic Timer Switch, Series: ET1100, Operation Mode: 24 hr, 120/277 VAC, 30 A, 1, 2 hp, 1 Pole, 1NO/SPST Contact Form, 1 min to 23 hr 59 min Time Setting, AAA Alkaline Battery, Teeter/Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 155 deg F, Wall Mounting, 200 mm H x 130.2 mm W x 87.3 mm D Dimensions

The ET1100 24 hr Electronic Time Switches enable a program to be repeated on a daily basis. These time switches provide dependable and uncomplicated performance, plus to-the-minute programming for accurate load control and reduced energy costs. Up to 28 setpoints or events can be preset to automatically repeat. The program can be disabled at any time by placing the time switch in the Manual operating mode. Control buttons provide manual control of each circuit independently, regardless of the operating mode. All models come with two industrial-grade AAA alkaline batteries to provide time keeping and automatic carryover for a minimum of 3 years. The batteries are easily replaced in the field and do not require removing the time switch mechanism or field wiring. Each time switch is housed in a lockable enclosure to protect against vandalism and unauthorized tampering.

Product Details

Intermatic® Electronic Timer Switch, Series: ET1100, Operation Mode: 24 hr, 120/277 VAC, 30 A, 1, 2 hp, 1 Pole, 1NO/SPST Contact Form, 1 min to 23 hr 59 min Time Setting, AAA Alkaline Battery, Teeter/Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 155 deg F, Wall Mounting, 200 mm H x 130.2 mm W x 87.3 mm D Dimensions

The ET1100 24 hr Electronic Time Switches enable a program to be repeated on a daily basis. These time switches provide dependable and uncomplicated performance, plus to-the-minute programming for accurate load control and reduced energy costs. Up to 28 setpoints or events can be preset to automatically repeat. The program can be disabled at any time by placing the time switch in the Manual operating mode. Control buttons provide manual control of each circuit independently, regardless of the operating mode. All models come with two industrial-grade AAA alkaline batteries to provide time keeping and automatic carryover for a minimum of 3 years. The batteries are easily replaced in the field and do not require removing the time switch mechanism or field wiring. Each time switch is housed in a lockable enclosure to protect against vandalism and unauthorized tampering.

Attributes

Amperage Rating: 30 A
Battery Type: AAA Alkaline
Contact Form: 1NO/SPST
Country Of Origin: China
Dimensions: 200 mm H x 130.2 mm W x 87.3 mm D
Electrical Connections: Teeter/Wire Lead
Enclosure Type: NEMA 1
Horsepower: 1, 2 hp
Mounting Type: Wall
Number of Poles: 1
Operation Mode: 24 hr
Series: ET1100
Temperature Rating: -40 to 155 deg F
Time Setting: 1 min to 23 hr 59 min
Voltage Rating: 120/277 VAC

Features

  • Selector switch to determine input voltage between 120-277 VAC
  • Up to 28 events total
  • To-the-minute accuracy
  • Temporary override or permanent manual override
  • Automatic Daylight Saving Time adjustment
  • Astronomic models enable dusk-to-dawn scheduling
