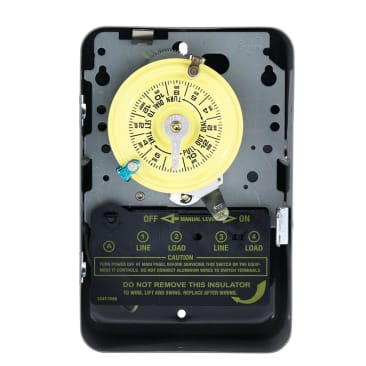

INTERMATIC T103 Image 1

INTERMATIC T103 24 HR DIAL DPST 125V 40A 2 HP

MFR Part #: T103
SKU #: 0737185
Brand: Intermatic®
UPC: 078275000049
Intermatic® T103 T100 Electro Mechanical Timer Switch, 24 hr Setting, 125 VAC, 5 hp, 2NO/DPST Contact, 2 Poles
1 Year
Commercial, Industrial, Residential, Indoor and HVACR Applications
cCSAus Certified | HVACR

Intermatic® Timer Switch, Electro Mechanical, Series: T100, 125 VAC, 40 A, 5 hp, 2 Pole, 2NO/DPST Contact Form, 24 hr Time Setting, Teeter Electrical Connections, NEMA 1 Enclosure, -40 to 130 deg F, Wall Mounting, 5 in L x 3 in W x 7-3/4 in H Dimensions

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Product Details

Intermatic® Timer Switch, Electro Mechanical, Series: T100, 125 VAC, 40 A, 5 hp, 2 Pole, 2NO/DPST Contact Form, 24 hr Time Setting, Teeter Electrical Connections, NEMA 1 Enclosure, -40 to 130 deg F, Wall Mounting, 5 in L x 3 in W x 7-3/4 in H Dimensions

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Attributes

Amperage Rating: 40 A
Contact Form: 2NO/DPST
Country Of Origin: Mexico
Dimensions: 5 in L x 3 in W x 7-3/4 in H
Electrical Connections: Teeter
Enclosure Type: NEMA 1
Horsepower: 5 hp
Mounting Type: Wall
Number of Poles: 2
Series: T100
Temperature Rating: -40 to 130 deg F
Time Setting: 24 hr
Type: Electro Mechanical
Voltage Rating: 125 VAC

Features

  • Highest motor load ratings in the industry
  • 12 ON/OFF operations per day
  • One ON and one OFF tripper included
  • Can be installed in most Intermatic enclosures
  • Available with pool heater protection
  • Teeter-type terminals for multiple load connections

Resources

Specification Sheet
