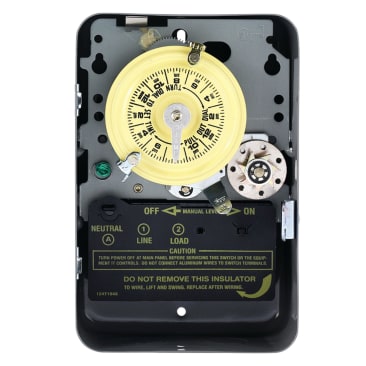

INTERMATIC T171 24 HOUR DIAL SPST TIMER
Product Details
Attributes
Features
Resources
Intermatic® Mechanical Timer Switch, Series: T170, 125 VAC, 40 A, 5 hp, 1 Pole, 1NO/SPST Contact Form, 24 hr Time Setting, NEMA 1 Enclosure, -40 to 130 deg F, Wall Mounting, 7-7/8 in H x 5-1/8 in W x 3-7/16 in D Dimensions
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series time switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
- Direct 24 hr control of most loads
- Up to 10 ON/OFF operations each day
- Minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper and three day-skipper screws included
Product Details
Intermatic® Mechanical Timer Switch, Series: T170, 125 VAC, 40 A, 5 hp, 1 Pole, 1NO/SPST Contact Form, 24 hr Time Setting, NEMA 1 Enclosure, -40 to 130 deg F, Wall Mounting, 7-7/8 in H x 5-1/8 in W x 3-7/16 in D Dimensions
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series time switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
Attributes
Features
- Direct 24 hr control of most loads
- Up to 10 ON/OFF operations each day
- Minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper and three day-skipper screws included
