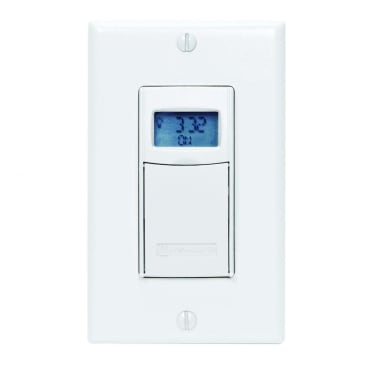

INTERMATIC EI400WC Image 1

INTERMATIC EI400WC AUTO SHUT-OFF TIMER WHITE

MFR Part #: EI400WC
SKU #: 1057032
Brand: Intermatic®
UPC: 078275101388
Intermatic® EI400WC Auto-Off Decorator Digital Electronic In-Wall Timer, 1 s to 24 hr Setting, 120 to 127 VAC, 12 to 18 VDC, 1 hp, 1NO/SPST Contact, 1 Poles
5 Years
CFL Lighting, LED Lighting and HVACR Applications

Intermatic® In-Wall Timer, Auto-Off Decorator Digital Electronic, Series: EI400, 120 to 127 VAC, 12 to 18 VDC, 20 A, 1 hp, 1 Pole, 1NO/SPST Contact Form, 1 s to 24 hr Time Setting, 1 s to 24 hr Pulse, CR2 Lithium Battery, 32 to 122 deg F, Wall Mounting, 2.75 in H x 1.75 in W x 1.36 in D Dimensions

The EI400 series decorator digital auto-off in-wall timers effectively replace 16 different spring-wound models. The timers provide flexibility, easy installation and silent operation. The timers provide a to-the-second accuracy time range from 1 second to 24 hrs.

Product Details

Intermatic® In-Wall Timer, Auto-Off Decorator Digital Electronic, Series: EI400, 120 to 127 VAC, 12 to 18 VDC, 20 A, 1 hp, 1 Pole, 1NO/SPST Contact Form, 1 s to 24 hr Time Setting, 1 s to 24 hr Pulse, CR2 Lithium Battery, 32 to 122 deg F, Wall Mounting, 2.75 in H x 1.75 in W x 1.36 in D Dimensions

The EI400 series decorator digital auto-off in-wall timers effectively replace 16 different spring-wound models. The timers provide flexibility, easy installation and silent operation. The timers provide a to-the-second accuracy time range from 1 second to 24 hrs.

Attributes

Amperage Rating: 20 A
Battery Type: CR2 Lithium
Contact Form: 1NO/SPST
Dimensions: 2.75 in H x 1.75 in W x 1.36 in D
Horsepower: 1 hp
Mounting Type: Wall
Number of Poles: 1
Pulse Duration: 1 s to 24 hr
Series: EI400
Temperature Rating: 32 to 122 deg F
Time Setting: 1 s to 24 hr
Type: Auto-Off Decorator Digital Electronic
Voltage Rating: 120 to 127 VAC/12 to 18 VDC

Features

  • Programmable countdown time interval from one second to 24 hr
  • Settings stored in non-volatile memory
  • Optional audible and/or visual warning of impending load switch OFF
  • Lockable settings help avoid unintended changes
  • Single-pole or 3-way switch compatible installation
  • Incandescent/fluorescent/CFL/LED compatible
  • Isolated switch allows timer to be used with any load type including AC and DC loads
  • No neutral wire connection enables easy retrofitting and quicker installation
  • 24 hr programming allows for continuous operation

Resources

Specification Sheet
