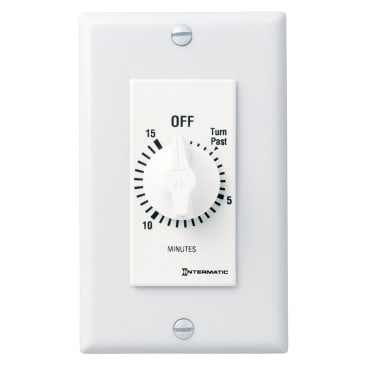

INTERMATIC FD15MWC Image 1

INTERMATIC FD15MWC 15MIN DECORA SPRING TIMER WH

MFR Part #: FD15MWC
SKU #: 0737431
Brand: Intermatic®
UPC: 078275005020
Intermatic® FD15MWC FD Series Auto Off Decorator Mechanical Spring Wound Timer, 15 min Setting, 125/257 VAC, 1 hp, 2 hp, 1NO/SPST Contact, 1 Poles
1 Year
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters and HVACR Applications

Intermatic® Spring Wound Timer, Auto Off Decorator Mechanical, Series: FD Series, 125/257 VAC, 15 A, 1 hp, 2 hp, 1 Pole, 1NO/SPST Contact Form, 15 min Time Setting, Teeter Electrical Connections, -40 to 104 deg F, Wall Mounting, 2.79 in H x 1.6 in W x 1.19 in D Dimensions

The FD series decorator countdown timers are designed to replace any standard or decorator style wall switch, single or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads.

Product Details

Intermatic® Spring Wound Timer, Auto Off Decorator Mechanical, Series: FD Series, 125/257 VAC, 15 A, 1 hp, 2 hp, 1 Pole, 1NO/SPST Contact Form, 15 min Time Setting, Teeter Electrical Connections, -40 to 104 deg F, Wall Mounting, 2.79 in H x 1.6 in W x 1.19 in D Dimensions

The FD series decorator countdown timers are designed to replace any standard or decorator style wall switch, single or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads.

Attributes

Amperage Rating: 15 A
Contact Form: 1NO/SPST
Dimensions: 2.79 in H x 1.6 in W x 1.19 in D
Electrical Connections: Teeter
Horsepower: 1 hp, 2 hp hp
Mounting Type: Wall
Number of Poles: 1
Series: FD Series
Temperature Rating: -40 to 104 deg F
Time Setting: 15 min
Type: Auto Off Decorator Mechanical
Voltage Rating: 125/257 VAC

Features

  • SPST (Single-Pole Single-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Incandescent/fluorescent/CFL/LED compatible

Resources

Specification Sheet
