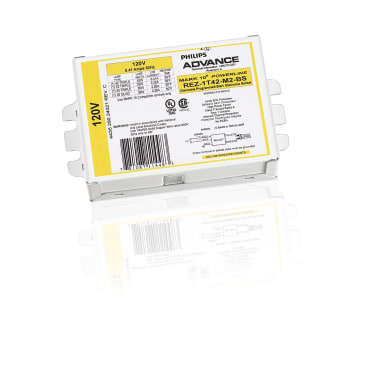

PHILIPS 182162 Image 1

PHILIPS 182162 MARK10 POWERLINE DIMMABLE CFL BALLAST 42W CFL 4-PIN 120V

MFR Part #: 182162
SKU #: 1116863
Brand: Signify | Advance
UPC: 781087114483
Advance MARK 10 POWERLINE 182162 Controllable Electronic Ballast, CFL Lamp, 42 W Lamp, 120 VAC, Programmed, 0.05 to 1 Ballast Factor
This product may be subject to ecological fees.
Outdoor Applications
CEC Certified | CSA Certified | FCC Approved | UL Listed

Advance MARK 10 POWERLINE Ballast, Controllable Electronic, CFL Lamp, 42 W Lamp, 10 to 49 W Wattage, 120 VAC, 0.41 A, 60 Hz Frequency, Programmed Start, 50 deg F Minimum Starting, Total Harmonic Distortion: 0.1, Power Factor: 0.98, Yes Dimmable, 1 Lamps, GX24q Lamp Base, Ballast Factor: 0.05 to 1, 70 deg C, Metal, 4.2 in L x 3 in W x 1.29 in H Dimensions

For companies looking to make their fixed output linear T8, 4-pin CFL and T5/HO fluorescent systems more cost effective and sustainable, Mark 10 Powerline ballasts provide an easy solution without the need for additional control leads. Simply, (1) replace the ballast, (2) replace the switch, (3) dim the lights, that is all it takes. It's that easy-to bring the convenience and flexibility of fluorescent dimming to conference rooms, private offices, auditoriums, architectural cove lighting - anywhere dimming is required.

Product Details

Advance MARK 10 POWERLINE Ballast, Controllable Electronic, CFL Lamp, 42 W Lamp, 10 to 49 W Wattage, 120 VAC, 0.41 A, 60 Hz Frequency, Programmed Start, 50 deg F Minimum Starting, Total Harmonic Distortion: 0.1, Power Factor: 0.98, Yes Dimmable, 1 Lamps, GX24q Lamp Base, Ballast Factor: 0.05 to 1, 70 deg C, Metal, 4.2 in L x 3 in W x 1.29 in H Dimensions

For companies looking to make their fixed output linear T8, 4-pin CFL and T5/HO fluorescent systems more cost effective and sustainable, Mark 10 Powerline ballasts provide an easy solution without the need for additional control leads. Simply, (1) replace the ballast, (2) replace the switch, (3) dim the lights, that is all it takes. It's that easy-to bring the convenience and flexibility of fluorescent dimming to conference rooms, private offices, auditoriums, architectural cove lighting - anywhere dimming is required.

Attributes

Country Of Origin: Mexico
Lamp Type: CFL
Lamp Wattage: 42 W
Number of Lamps: 1
Wattage: 10 to 49 W
Amperage Rating: .41 A
Ballast Factor: 0.05 to 1
Dimensions: 4.2 in L x 3 in W x 1.29 in H
Dimmable: Yes
Frequency Rating: 60 Hz
Lamp Base Type: GX24q
Material: Metal
Minimum Starting Temperature: 50 deg F
Power Factor: .98
Start Type: Programmed
Temperature Range: 70 deg C
Total Harmonic Distortion: .1
Type: Controllable Electronic
Voltage Rating: 120 VAC

Features

  • Bottom mounting studs with single entry color coded connectors
