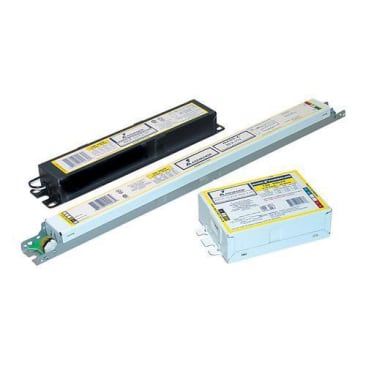

PHILIPS REZ2S32SC35M Image 1

PHILIPS 183053 MARK10 POWERLINE DIMMABLE T8 FLUORESCENT BALLAST F32T8 120V

MFR Part #: REZ2S32SC35M
SKU #: 1116869
Brand: Signify | Advance
UPC: 781087109908
Advance REZ2S32SC35M Controllable Small Can Dimmable Fluorescent Ballast, T8 Lamp, 32 W Lamp, 120 VAC, Programmed, 0.05 to 1 Ballast Factor
This product may be subject to ecological fees.
TV, Radio Station, Library, Reception, Reading Room, Church and School Study Hall Applications
UL Listed|CEC Certified|BAA Compliant|FCC Approved|NoM Certified

Advance, REZ2S32SC35M, Dimmable Fluorescent Ballast, Controllable Small Can, T8 Lamp, 32 W Lamp, 15 to 68 W Wattage, 120 VAC, 0.57 A, 60 Hz Frequency, Programmed Start, 10 deg C Minimum Starting, Total Harmonic Distortion: 10%, Power Factor: 0.99, Yes Dimmable, 2 Lamps, Ballast Factor: 0.05 to 1, 70 deg C, Metal, 9.5 in L x 1.7 in W x 1.18 in H Dimensions

For companies looking to make their fixed output linear T8, 4-pin CFL and T5HO fluorescent systems more cost effective and sustainable, Mark 10® Powerline ballasts provide an easy solution without the need for additional control leads. Simply, (1) replace the ballast, (2) replace the switch, (3) dim the lights, that is all it takes. Its that easy to bring the convenience and flexibility of fluorescent dimming to conference rooms, private offices, auditoriums, architectural cove lighting - anywhere dimming is required.

Product Details

Advance, REZ2S32SC35M, Dimmable Fluorescent Ballast, Controllable Small Can, T8 Lamp, 32 W Lamp, 15 to 68 W Wattage, 120 VAC, 0.57 A, 60 Hz Frequency, Programmed Start, 10 deg C Minimum Starting, Total Harmonic Distortion: 10%, Power Factor: 0.99, Yes Dimmable, 2 Lamps, Ballast Factor: 0.05 to 1, 70 deg C, Metal, 9.5 in L x 1.7 in W x 1.18 in H Dimensions

For companies looking to make their fixed output linear T8, 4-pin CFL and T5HO fluorescent systems more cost effective and sustainable, Mark 10® Powerline ballasts provide an easy solution without the need for additional control leads. Simply, (1) replace the ballast, (2) replace the switch, (3) dim the lights, that is all it takes. Its that easy to bring the convenience and flexibility of fluorescent dimming to conference rooms, private offices, auditoriums, architectural cove lighting - anywhere dimming is required.

Attributes

Country Of OriginMexico
Lamp Wattage32 W
Number of Lamps2
Start TypeProgrammed
Voltage Rating120 VAC
Wattage15 to 68 W
Amperage Rating.57 A
Ballast Factor0.05 to 1
Dimensions9.5 in L x 1.7 in W x 1.18 in H
DimmableYes
Frequency Rating60 Hz
Lamp TypeT8
MaterialMetal
Minimum Starting Temperature10 deg C
Power Factor.99
Temperature Range70 deg C
Total Harmonic Distortion10%
TypeControllable Small Can

Features

  • High power factor
  • Sound rated A
  • Series lamp connection
  • Ballast shall be physically interchangeable with standard electromagnetic or standard electronic ballasts, where applicable
  • Ballast shall be available in a plastic/metal can or all metal can construction to meet all plenum requirements
  • Ballast shall be provided with poke-in wire trap connectors or integral leads color coded per ANSI C82.11
