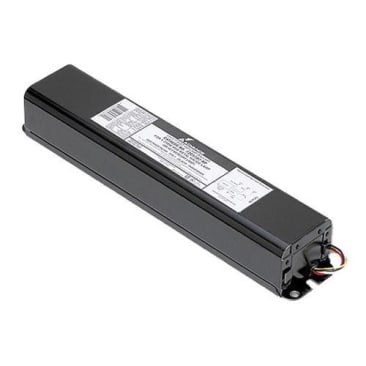

METAL HALIDE F-CAN BALLAST 250W M58 120/347V PHILIPS 505560
Product Details
Attributes
Features
Resources
Advance, 72C57C2NP, HID Ballast, F-Can Magnetic, HID Metal Halide Lamp, 250 W Lamp, 290 W Wattage, 120/347 VAC, 2/0.7 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, 1 Lamps, 72C57C2 Lamp Base, Ballast Factor: 1, ANSI M58 Ballast Grade, 90 deg C, 12 in L x 3.9 in W x 2.6 in H Dimensions
Philips Advance HID ballasts are available to operate the wide variety of metal halide, high pressure sodium and low pressure sodium lamps available in today's marketplace. Like fluorescent, HID lamps are gas discharge lamps. Light is produced by an arc discharge between two electrodes located at opposite ends of an arc tube within the lamp's outer glass envelope. The ballast is the lamp's power supply; its purpose is to provide proper starting and operating voltage and current to initiate and sustain this arc. Philips furnishes 120/208/240/277 Philips Advance Quadri-Volt core and coil ballasts to allow the stocking distributor to conveniently meet the replacement and retrofit needs of customers. In addition, we now offer 120/208/240/277/480 VAC 5-TAP core and coil ballasts for the most popular applications. 5-TAP ballasts add the 480 VAC input lead to the Quadri-Volt designs. A Quadri-Volt or 5-TAP core and coil, along with the appropriate capacitor, igniter (where required), mounting bracket and hardware and installation instructions are packed in a space saving shipping carton. These kits eliminate the need for distributors or end users to stock loose components of single voltage ballasts for 120, 208, 240, 277 and even some 480 VAC applications, though single voltage kits for 480 VAC applications will also be available.
- The Philips Advance line of F-can HID ballasts comes in two dual voltage configurations for the US and Canadian market
- Ballasts for these luminaires are most often encased and potted in fluorescent ballast type cans
- 45 Mfd capacitor
- 2/0.7 A input current (open circuit), 2/0.7 A input current (starting), 1.5 to 2.3 A, 0.55 to 0.8 A input current (short circuit), 2.5/0.85 A input current (nominal)
- Thermally protected
- UL insulation class A of 105 deg C
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips® Advance five other ballast configurations
- Ballast replacement kit with dry film capacitor
