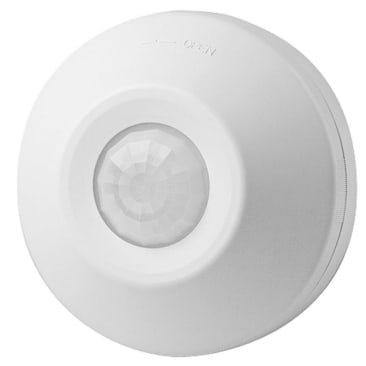

LEVITON ODC0S-I1W 120V 360DEG 530SQFT CEILING MOUNT OCCUPENCY SENSOR WHITE
Product Details
Attributes
Features
Resources
Leviton® Occupancy Sensor, Self-Contained, 120 VAC, 1.45 W Power, PIR Sensor, 530 sq-ft Coverage, 360 deg Viewing, 20 s to 15 min Time Delay, Fluorescent/Incandescent Lamp, 60 Hz Response, Automatic On/Automatic Off Control Output, Ceiling Mounting, 32 to 122 deg F, White, 4.3 in Dia x 2.15 in H Dimensions
Leviton® self-contained passive infrared ceiling occupancy sensor is the cost effective choice for commercial and institutional installations, where installation of the recessed ceiling unit is difficult, inconvenient or costly. Available in 120, 220 and 277 VAC versions, the ODC0S-I is ideal for storage areas, small bathrooms, copy rooms, mop/sink closets or small spaces without wall switches. The self-contained ceiling sensor does not require an external control unit for power or switching the load on and off. LED ready.
- Sensor and switching relay in one unit reduces labor and need for additional materials
- Segmented fresnel lens contains 79-segments for optimum sensitivity and detection performance
- A standard A/C toggle switch may be used to provide manual off override so that lights may be switched off
- Red LED indicator light flashes when sensor detects motion, to verify power placement and function of sensor at installation
Product Details
Leviton® Occupancy Sensor, Self-Contained, 120 VAC, 1.45 W Power, PIR Sensor, 530 sq-ft Coverage, 360 deg Viewing, 20 s to 15 min Time Delay, Fluorescent/Incandescent Lamp, 60 Hz Response, Automatic On/Automatic Off Control Output, Ceiling Mounting, 32 to 122 deg F, White, 4.3 in Dia x 2.15 in H Dimensions
Leviton® self-contained passive infrared ceiling occupancy sensor is the cost effective choice for commercial and institutional installations, where installation of the recessed ceiling unit is difficult, inconvenient or costly. Available in 120, 220 and 277 VAC versions, the ODC0S-I is ideal for storage areas, small bathrooms, copy rooms, mop/sink closets or small spaces without wall switches. The self-contained ceiling sensor does not require an external control unit for power or switching the load on and off. LED ready.
Attributes
Features
- Sensor and switching relay in one unit reduces labor and need for additional materials
- Segmented fresnel lens contains 79-segments for optimum sensitivity and detection performance
- A standard A/C toggle switch may be used to provide manual off override so that lights may be switched off
- Red LED indicator light flashes when sensor detects motion, to verify power placement and function of sensor at installation
