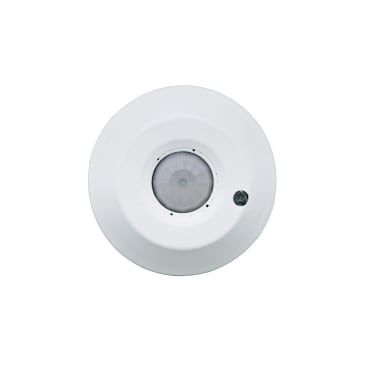

LEVITON ODC15-IDW PROVOLT 120V 360DEG 1500SQFT CEILING MOUNT OCCUPENCY SENSOR WITH INTEGRATED PHOTOCELL WHITE
Product Details
Attributes
Features
Resources
Leviton® Provolt™ Occupancy Sensor, 120 to 277 VAC, PIR Sensor, 1500 sq-ft Coverage, 360 deg Viewing, 30 s to 30 min Time Delay, LED Lamp, 50/60 Hz Response, Wired Connection, Manual On/Automatic Off/Automatic On/Automatic Off Control Output, Ceiling Mounting, 32 to 104 deg F, White, 4.81 in Dia x 2.39 in H
The Leviton® Provolt™ series combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low cost, efficient energy solution for new construction and retrofits.
- Uses industry exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC systems
- A fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor
- Auto adapting time delay and sensitivity are continually adjusted to occupancy pattern of use
- Industry exclusive self-configuring local manual switch input momentary or maintained switches are supported
- Industry exclusive fail safe circuitry in the event of product failure, return to closed feature causes the relay to default on which eliminates life safety concerns
- Presentation mode allows user to turn lights off and keep them off while the room is occupied
- Test mode for simplified commissioning
- Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility
- Robust and reliable mechanically held 10 a latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
- Lenses are easily replaceable and color coded blue (high density) and red (mid range) for contractors and end users to easily identify lenses from the ground
- Red visual LED indicator blinks when infrared is detecting motion and during photocell manual calibration, solid during device malfunction
- Yellow visual LED indicator blinks during test mode, solid with emergency/BMS input
- Blue visual LED indicator blinking light indicates photocell override
Product Details
Leviton® Provolt™ Occupancy Sensor, 120 to 277 VAC, PIR Sensor, 1500 sq-ft Coverage, 360 deg Viewing, 30 s to 30 min Time Delay, LED Lamp, 50/60 Hz Response, Wired Connection, Manual On/Automatic Off/Automatic On/Automatic Off Control Output, Ceiling Mounting, 32 to 104 deg F, White, 4.81 in Dia x 2.39 in H
The Leviton® Provolt™ series combine line voltage occupancy sensors and photocells into a self-contained unit. The integrated design alleviates the need for separate power pack and occupancy sensor wiring making it a low cost, efficient energy solution for new construction and retrofits.
Attributes
Features
- Uses industry exclusive digital (4 element) PIR circuitry for fewer false triggers from unwanted sources such as HVAC systems
- A fresnel lens establishes dozens of detection zones requiring the heat source to move from one zone to another to trigger the sensor
- Auto adapting time delay and sensitivity are continually adjusted to occupancy pattern of use
- Industry exclusive self-configuring local manual switch input momentary or maintained switches are supported
- Industry exclusive fail safe circuitry in the event of product failure, return to closed feature causes the relay to default on which eliminates life safety concerns
- Presentation mode allows user to turn lights off and keep them off while the room is occupied
- Test mode for simplified commissioning
- Manual switch and emergency override are class 1 and 2 circuits, class 2 circuits provided for flexibility
- Robust and reliable mechanically held 10 a latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
- Lenses are easily replaceable and color coded blue (high density) and red (mid range) for contractors and end users to easily identify lenses from the ground
- Red visual LED indicator blinks when infrared is detecting motion and during photocell manual calibration, solid during device malfunction
- Yellow visual LED indicator blinks during test mode, solid with emergency/BMS input
- Blue visual LED indicator blinking light indicates photocell override
