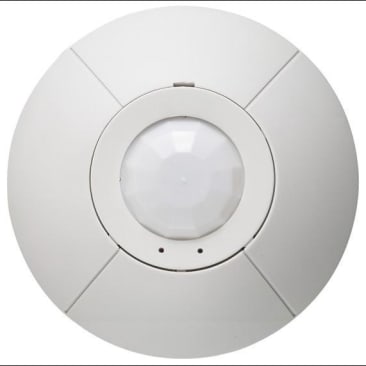

LUTRON LOS-CIR-1500-WH CEILING MOUNT OCC SENCOR INFRARED
Product Details
Attributes
Features
Resources
Lutron® Occupancy Sensor, Series: LOS-CIR, 20 to 24 VDC, 33 mA, Passive/Ultrasonic Infrared Sensor, 1500 sq-ft Coverage, 360 deg Viewing, 8 to 30 min Manual, 8 sec Test Time Delay, 6 in Wire Lead Connection, 20 to 24 VDC Control Output, Ceiling Mounting, 32 to 104 deg F, Plastic, White, 4.5 in Dia x 1.4 in D Dimensions
The LOS-CIR series passive infrared ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. The sensor uses a small semiconductor heat detector that resides behind a multi-zone optical lens. The detector is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one range of detection to another. Non-moving hot objects will not cause the lights to turn on.
- Intelligent, continually adapting passive infrared (PIR) sensor provides reliable detection with high error immunity
- The internal microprocessor analyzes the information from the PIR technology and determines the optimum setting to use in order to properly cover the space
- Non-volatile memory, settings saved in protected memory are not lost during power outages
- Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system
- Injection molded plastic
Product Details
Lutron® Occupancy Sensor, Series: LOS-CIR, 20 to 24 VDC, 33 mA, Passive/Ultrasonic Infrared Sensor, 1500 sq-ft Coverage, 360 deg Viewing, 8 to 30 min Manual, 8 sec Test Time Delay, 6 in Wire Lead Connection, 20 to 24 VDC Control Output, Ceiling Mounting, 32 to 104 deg F, Plastic, White, 4.5 in Dia x 1.4 in D Dimensions
The LOS-CIR series passive infrared ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. The sensor uses a small semiconductor heat detector that resides behind a multi-zone optical lens. The detector is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one range of detection to another. Non-moving hot objects will not cause the lights to turn on.
Attributes
Features
- Intelligent, continually adapting passive infrared (PIR) sensor provides reliable detection with high error immunity
- The internal microprocessor analyzes the information from the PIR technology and determines the optimum setting to use in order to properly cover the space
- Non-volatile memory, settings saved in protected memory are not lost during power outages
- Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system
- Injection molded plastic
