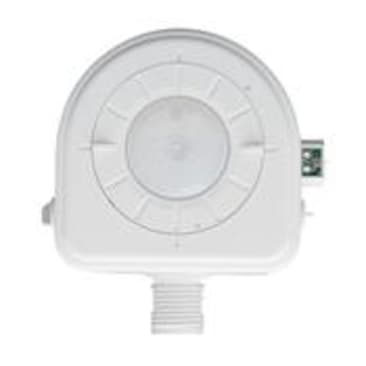

LEVITON OSFHP-ITW PIR FIX MNT HIGH BAY OCC SENSOR 120-347V
Product Details
Attributes
Features
Resources
Leviton® Occupancy Sensor, High Bay, Series: OSFHP, 120 to 347 VAC, 20 mA, Passive Infrared Sensor, 25 ft Coverage, 360 deg Viewing, 30 s to 30 min/30 s to Infinity Time Delay, 50/60 Hz Response, Fixture Mounting, -10 to 71 deg C, White, 4.34 in L x 1.58 in H x 4.44 in D Dimensions
Whether factory or field installed, new installation or retrofit, Leviton® fixture mounted sensors provide fast, easy installation and immediate energy savings by automatically activating lighting only during periods of occupancy. Reliable passive infrared (PIR) technology detects occupancy and the variable time delay up to 30 min is user accessible without power, tools or disassembly and allows the ideal setting based on application needs. Included with the sensor are lenses for high-bay and low-bay, allowing one unit to cover a variety of applications. The innovative AutoCal™ feature performs an automatic daylight level calibration. Once calibrated, the sensor requires no further adjustment and immediately enters daylighting mode, actively switching the connected fixture load On and Off in response to occupancy and available natural light maximizing energy savings through efficient light harvesting.
- Rotating light sensor optimal for best performance in locating light measurements (up, down and side lighting)
- Auto-calibration set to Auto calibration, light sensor measures lowest light level of facility with all lights on for 24 hr to determine the daylighting set point
- Manual calibration optimize energy-saving and operation by manually configuring the daylighting set point
- Performance daylighting enhanced design algorithms to assure lights will not cycle during cloud cover or varying light levels
- Fast and simple setting the OSFHP does not require power to set the time delay saving valuable time during installation load 1 = 30 s to 30 min, load 2 = 30 s infinity (starts after load 1 expires)
- Fast and simple testing the OSFHP will "instant ON" within 5 sec, upon initial power, relay is closed enabling labor savings testing in s
- Power interruption state for energy-saving and safety, if power is lost to device, device will return to last known state
- Fast, simple installation the OSFHP sensor easily installs on individual fixtures using standard 1/2 in knockouts and the quicksnap feature which eliminates the time to tighten the lock-nut
- The 42 in wire leads reduce time and materials for connecting the ballast
- Simply make the electrical connections inside the ballast compartment, install the appropriate adjustable lens assembly included and the sensor is ready
- Zero-crossing circuitry relay uses a zero-crossing circuitry to provide reliable, long life operation
- Range and coverage the 360 deg high bay PIR lens provides a 21 spacing to mounting height coverage under 25 ft mounting and a 1.51 for heights up to 40 ft mounting
- The 360 deg low bay lens provides 21 spacing to mounting height coverage for 8 to 20 ft mounting
- LED super bright green LED indicates occupancy detection and can be seen at 40 ft
- False detection protection energy-saving technology is designed into the OSFHD to assure your lights are on only when needed
