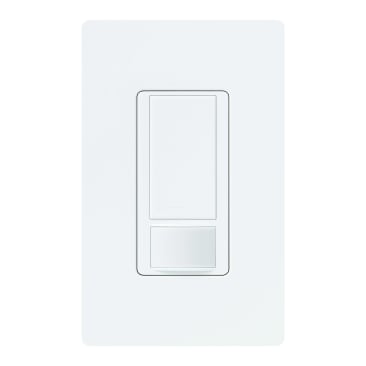

LUTRON MS-OPS2-WH MAESTRO 120V 2A IN-WALL OCC/VAC SENSOR WHT
Product Details
Attributes
Features
Resources
Lutron®, MS-OPS2-WH, Occupancy Sensing Switch, 1-Pole, Series: Maestro®, 120 VAC, 2 A, 240 W Power, Passive Infrared Sensor, 400 sq-ft Minor, 900 sq-ft Major Coverage, 180 deg Viewing, 10 s Time Delay, ELV/Fluorescent/Halogen/Incandescent/LED/MLV Lamp, 50/60 Hz Response, Ground Connection, Manual On/Automatic Off/Automatic On/Automatic Off Control Output, NEMA WD7 Enclosure, Wall Mounting, 32 to 104 deg F, White, 4-11/16 in H x 2-15/16 in W x 1-1/8 in D Dimensions
The Lutron® Maestro® occupancy sensing switch combines a Maestro® switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedbac
- Actively adapts to variations in relay timing
- Vacancy version available to meet CA Title 24 requirements
- Adjustable timeout (1 min, 5 min, 15 min or 30 min) and high/low sensitivity adjustment
- Single Pole only
- Adaptive zero cross maximizes relay life by switching at the point of minimum energy on the AC power curve
- Incandescent/halogen/ELV/MLV/CFL/LED/magnetic and electronic fluorescent/fan lamp
- Wire-Lead installation, Ground or Neutral Required
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- Up to 30 x 30 ft (9 x 9 m) 900 sq-ft (81 sq-m) major motion coverage and 20 x 20 ft (6 x 6 m) 400 sq-ft (36 sq-m) minor motion coverage
- Rated to work with up to 2A lighting, 120V
- 180 deg sensor field of view (900 sq ft major motion and 400 sq ft minor motion coverage), Tamper-resistant lens
Product Details
Lutron®, MS-OPS2-WH, Occupancy Sensing Switch, 1-Pole, Series: Maestro®, 120 VAC, 2 A, 240 W Power, Passive Infrared Sensor, 400 sq-ft Minor, 900 sq-ft Major Coverage, 180 deg Viewing, 10 s Time Delay, ELV/Fluorescent/Halogen/Incandescent/LED/MLV Lamp, 50/60 Hz Response, Ground Connection, Manual On/Automatic Off/Automatic On/Automatic Off Control Output, NEMA WD7 Enclosure, Wall Mounting, 32 to 104 deg F, White, 4-11/16 in H x 2-15/16 in W x 1-1/8 in D Dimensions
The Lutron® Maestro® occupancy sensing switch combines a Maestro® switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedbac
Attributes
Features
- Actively adapts to variations in relay timing
- Vacancy version available to meet CA Title 24 requirements
- Adjustable timeout (1 min, 5 min, 15 min or 30 min) and high/low sensitivity adjustment
- Single Pole only
- Adaptive zero cross maximizes relay life by switching at the point of minimum energy on the AC power curve
- Incandescent/halogen/ELV/MLV/CFL/LED/magnetic and electronic fluorescent/fan lamp
- Wire-Lead installation, Ground or Neutral Required
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- Up to 30 x 30 ft (9 x 9 m) 900 sq-ft (81 sq-m) major motion coverage and 20 x 20 ft (6 x 6 m) 400 sq-ft (36 sq-m) minor motion coverage
- Rated to work with up to 2A lighting, 120V
- 180 deg sensor field of view (900 sq ft major motion and 400 sq ft minor motion coverage), Tamper-resistant lens
