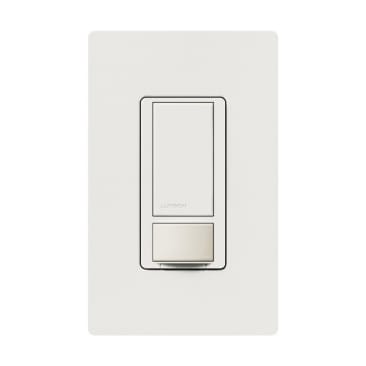

LUTRON MS-OPS5M-WH MAESTRO 120V 5A IN-WALL OCC/VAC SENS WHT
Product Details
Attributes
Features
Resources
Lutron®, MS-OPS5M-WH, Occupancy Sensing Switch, 1-Pole Multi-Location, Series: Maestro®, 120 VAC, 5 A, Passive Infrared Sensor, 400 sq-ft Minor, 900 sq-ft Major Coverage, 180 deg Viewing, 10 s Time Delay, ELV/Fluorescent/Halogen/Incandescent/LED/MLV Lamp, 50/60 Hz Response, Ground Connection, Manual On/Automatic Off/Automatic On/Automatic Off Control Output, NEMA WD7 Enclosure, Wall Mounting, 32 to 104 deg F, White, 4-11/16 in H x 2-15/16 in W x 1-1/8 in D Dimensions
The Lutron® Maestro® occupancy sensing switch combines a Maestro® switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedbac
- Single pole, multilocation/3-way
- Up to 30 x 30 ft (9 x 9 m) 900 sq-ft (81 sq-m) major motion coverage and 20 x 20 ft (6 x 6 m) 400 sq-ft (36 sq-m) minor motion coverage
- Clamshell packaging
- Crush/tamper resistant lens
- Automatically turns the lights on when you enter the room and off when you leave
- 0 to 90 Percent humidity non-condensing, indoor use only
- Features XCT sensing technology which detects fine motion, such as typing at a desk or reading, ensuring lights do not turn off inadvertently
- Optional senses daylight so lights do not turn on when there is enough natural light in the room
- Smart ambient light detection
- Lutron® patented Softswitch®
- Off-state power
- Passive infrared sensors with exclusive Lutron® XCTTM Technology for fine motion detection
- Adjustable timeout (1 min, 5 min, 15 min or 30 min) and high/low sensitivity adjustment
- Works with all bulb types, up to 600W incandescent, halogen and electronic low-voltage, 450W magnetic low-voltage, 360W CFL/LED, 5 ballasts, 3A fans
- Adaptive switching algorithm for extended relay life
- Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
- Programmable time-out of lights - 1, 5, 15 or 30 min
Product Details
Lutron®, MS-OPS5M-WH, Occupancy Sensing Switch, 1-Pole Multi-Location, Series: Maestro®, 120 VAC, 5 A, Passive Infrared Sensor, 400 sq-ft Minor, 900 sq-ft Major Coverage, 180 deg Viewing, 10 s Time Delay, ELV/Fluorescent/Halogen/Incandescent/LED/MLV Lamp, 50/60 Hz Response, Ground Connection, Manual On/Automatic Off/Automatic On/Automatic Off Control Output, NEMA WD7 Enclosure, Wall Mounting, 32 to 104 deg F, White, 4-11/16 in H x 2-15/16 in W x 1-1/8 in D Dimensions
The Lutron® Maestro® occupancy sensing switch combines a Maestro® switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedbac
Attributes
Features
- Single pole, multilocation/3-way
- Up to 30 x 30 ft (9 x 9 m) 900 sq-ft (81 sq-m) major motion coverage and 20 x 20 ft (6 x 6 m) 400 sq-ft (36 sq-m) minor motion coverage
- Clamshell packaging
- Crush/tamper resistant lens
- Automatically turns the lights on when you enter the room and off when you leave
- 0 to 90 Percent humidity non-condensing, indoor use only
- Features XCT sensing technology which detects fine motion, such as typing at a desk or reading, ensuring lights do not turn off inadvertently
- Optional senses daylight so lights do not turn on when there is enough natural light in the room
- Smart ambient light detection
- Lutron® patented Softswitch®
- Off-state power
- Passive infrared sensors with exclusive Lutron® XCTTM Technology for fine motion detection
- Adjustable timeout (1 min, 5 min, 15 min or 30 min) and high/low sensitivity adjustment
- Works with all bulb types, up to 600W incandescent, halogen and electronic low-voltage, 450W magnetic low-voltage, 360W CFL/LED, 5 ballasts, 3A fans
- Adaptive switching algorithm for extended relay life
- Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
- Programmable time-out of lights - 1, 5, 15 or 30 min
