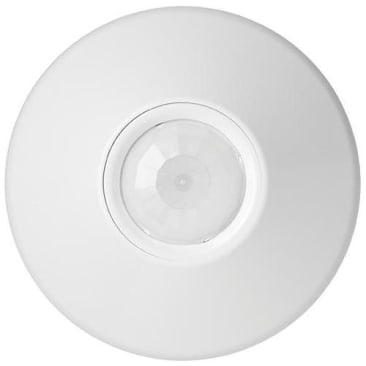

SENSOR SWITCH 184CGX CEILING MOUNT DUAL SMALL MTN 360 LENS
Product Details
Attributes
Features
Resources
Sensor Switch™, CM PDT 9, Occupancy Sensor, Low Voltage, Series: CM PDT, 12 to 24 VAC/VDC, 4 mA, PDT Sensor, 12 ft Coverage, 360 deg Viewing, 30 s to 20 min Time Delay, 902 MHz Response, Ceiling Mounting, -10 to 71 deg C, Plastic, Matte White, 4.55 in Dia x 1.55 in D Dimensions
The Wall Sensor Switch uses passive infrared technology to automatically turn lights on and off. By using sensors, energy consumption and costs are greatly reduced. The sensors detect body heat in motion and must be located where full line-of-sight is possible.
- No field calibration or sensitivity, adjustments required
- Pushbutton programmable, adjustable time delays and multiple operating modes
- Convenient test mode
- Green LED status indicator
- Suitable for indoor environments
- Time delay feature can be set for 30 seconds to 20 minutes
- Energy Management Equipment, UL916 (E167435), RoHS compliant
- The Sensor Switch CM 9 small motion ceiling mount sensor combines a low voltage sensor into a low profile design, making it perfect to mount directly to a ceiling tile or metallic grid
- 100 hr lamp burn-in timer mode
- For rooms with obstructions, these sensors offer Passive Dual Technology (PDT), which adds Microphonics detection to passive infrared (PIR) detection
- Enjoy the flexibility and convenience of programming sensor settings with your smartphone using the Sensor Switch Mobile App through camera flash programming
- 360 deg conical shaped pattern provides 12 ft radial coverage when mounted to standard 9 ft ceiling, 8 to 15 ft mounting heights provide 10 to 20 ft radial coverage, up to 14 sensors per power pack
- Best choice for small motion (e.g. hand movements) detection
Product Details
Sensor Switch™, CM PDT 9, Occupancy Sensor, Low Voltage, Series: CM PDT, 12 to 24 VAC/VDC, 4 mA, PDT Sensor, 12 ft Coverage, 360 deg Viewing, 30 s to 20 min Time Delay, 902 MHz Response, Ceiling Mounting, -10 to 71 deg C, Plastic, Matte White, 4.55 in Dia x 1.55 in D Dimensions
The Wall Sensor Switch uses passive infrared technology to automatically turn lights on and off. By using sensors, energy consumption and costs are greatly reduced. The sensors detect body heat in motion and must be located where full line-of-sight is possible.
Attributes
Features
- No field calibration or sensitivity, adjustments required
- Pushbutton programmable, adjustable time delays and multiple operating modes
- Convenient test mode
- Green LED status indicator
- Suitable for indoor environments
- Time delay feature can be set for 30 seconds to 20 minutes
- Energy Management Equipment, UL916 (E167435), RoHS compliant
- The Sensor Switch CM 9 small motion ceiling mount sensor combines a low voltage sensor into a low profile design, making it perfect to mount directly to a ceiling tile or metallic grid
- 100 hr lamp burn-in timer mode
- For rooms with obstructions, these sensors offer Passive Dual Technology (PDT), which adds Microphonics detection to passive infrared (PIR) detection
- Enjoy the flexibility and convenience of programming sensor settings with your smartphone using the Sensor Switch Mobile App through camera flash programming
- 360 deg conical shaped pattern provides 12 ft radial coverage when mounted to standard 9 ft ceiling, 8 to 15 ft mounting heights provide 10 to 20 ft radial coverage, up to 14 sensors per power pack
- Best choice for small motion (e.g. hand movements) detection
