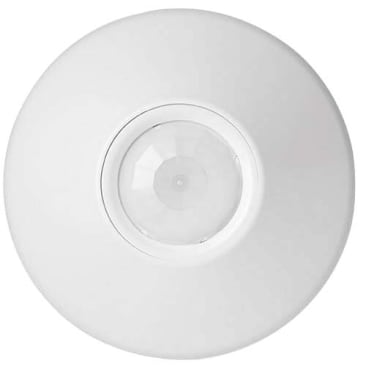

SENSOR SWITCH 184EU4 CEILING MOUNT STANDARD RING 360 LENS

Name: SENSOR SWITCH 184EU4 CEILING MOUNT STANDARD RING 360 LENS
Brand: Acuity Brands | Lithonia Lighting®
SKU: 1224691
Availability: OutOfStock

MFR Part #: 184EU4

SKU #: 1224691

Brand: Acuity Brands | Lithonia Lighting®

UPC: 745975859160

Lithonia Lighting® CM 9 R 184EU4 Occupancy Sensor, 14 to 185 deg F, Low Voltage Lead, Ceiling Mounting, 16 mA

5 Year

For automotive and parking, education, government, healthcare, hospitality, house of worship, manufacturing, offices and banks, power and gas, residential, retail, roadways, bridges and tunnels, sports and recreation, transportation, warehouse

cULus Listed|RoHS Compliant|UL 916 (E167435) Listed

Product Details
Attributes
Features
Resources

Lithonia Lighting® Occupancy Sensor, Model: CM 9 R, 14 to 185 deg F, Humidity Rating: 90 %, Connection Type: Low Voltage Lead, Ceiling Mounting, 12 to 24 VAC/VDC, 0 to 10 VDC, 16 mA, 12 ft Coverage Area, 360 deg Detection, 1.55 in Capillary Diameter, Green LED Indicator Display, Matte, White, 4.55 in Dia Dimensions

The CM family of ceiling-mount occupancy sensors provide a range sensor solutions for applications with finished ceilings (e.g. ceiling tiles, sheetrock, plaster). CM family sensors utilize 100% digital passive infrared (PIR) detection and are available with several lens options, providing flexibility for multiple mounting height and coverage pattern requirements. Dual Technology (PDT) occupancy detection can also be added as an option for applications where occupants are stationary for long periods of time. With optional flash programming via the sensor switch mobile App, the user can easily change time delay, on mode and photo control settings.

Product Details

Lithonia Lighting® Occupancy Sensor, Model: CM 9 R, 14 to 185 deg F, Humidity Rating: 90 %, Connection Type: Low Voltage Lead, Ceiling Mounting, 12 to 24 VAC/VDC, 0 to 10 VDC, 16 mA, 12 ft Coverage Area, 360 deg Detection, 1.55 in Capillary Diameter, Green LED Indicator Display, Matte, White, 4.55 in Dia Dimensions

The CM family of ceiling-mount occupancy sensors provide a range sensor solutions for applications with finished ceilings (e.g. ceiling tiles, sheetrock, plaster). CM family sensors utilize 100% digital passive infrared (PIR) detection and are available with several lens options, providing flexibility for multiple mounting height and coverage pattern requirements. Dual Technology (PDT) occupancy detection can also be added as an option for applications where occupants are stationary for long periods of time. With optional flash programming via the sensor switch mobile App, the user can easily change time delay, on mode and photo control settings.

Attributes

Color: White

Amperage Rating: 16 mA, 4 to 16 mA

Capillary Diameter: 1.55 in

Connection Type: Low Voltage Lead

Coverage: 12 ft

Coverage Area: 12 ft

Detection Range: 360 deg

Dimensions: 4.55 in Dia x 1.55 in D, 4.55 in Dia

Display Type: Green LED Indicator

Finish: Matte

Humidity Rating: 90 %

Material: Plastic

Model: CM 9 R

Mounting Type: Ceiling

Sensor Type: PIR

Series: CM Series

Temperature Rating: 14 to 185 deg F, -10 to 71 deg C

Time Delay: 30 s to 20 min

Type: Low Voltage

Viewing Angle: 360 deg

Voltage Rating: 12 to 24 VAC/VDC, 0 to 10 VDC, 12 to 24 VAC/VDC

Features

PIR occupancy detection
360 deg coverage pattern
Up to 14 sensors per power pack
Pushbutton programmable, adjustable time delays and multiple operating modes
100 hr lamp burn-in timer
No field calibration or sensitivity adjustments required
Convenient test mode
Small motion 360 deg coverage type
Low voltage relay
