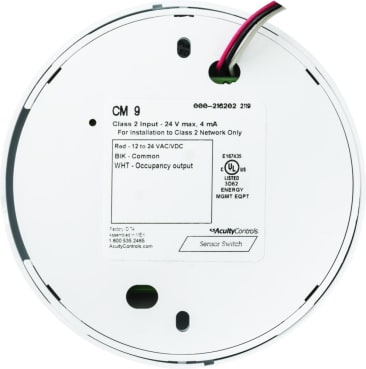

SENSOR SWITCH 184EYE CEILING MOUNT TECHNO SMALL MTN 360 LENS
Product Details
Attributes
Features
Resources
Sensor Switch™, CM PDT 9 R, Occupancy Sensor, Low Voltage, Series: CM PDT, 12 to 24 VAC/VDC, 4 to 16 mA, PDT Sensor, 12 ft Coverage, 360 deg Viewing, 30 s to 20 min Time Delay, Ceiling Mounting, -10 to 71 deg C, Plastic, White, 4.55 in Dia x 1.55 in D Dimensions
The Wall Sensor Switch uses passive infrared technology to automatically turn lights on and off. By using sensors, energy consumption and costs are greatly reduced. The sensors detect body heat in motion and must be located where full line-of-sight is possible.
- Lens assembly is marked with a gray ring around lens to differentiate versus the No. 10 lens
- 1 A at 24 VAC/VDC relay rating
- PP20 recommended power pack
- The CM is a low voltage sensor that easily mounts directly to a ceiling tile or a metallic grid
- Dual technology
- Small motion, 360 deg coverage pattern
- Push button programmable, adjustable time delays and multiple operating modes
- 100 hr lamp burn-in timer mode
- Convenient test mode
- Green LED indicator
- Standard temperature range and humidity
- 40 ballasts at 0.5 mA dimming load
