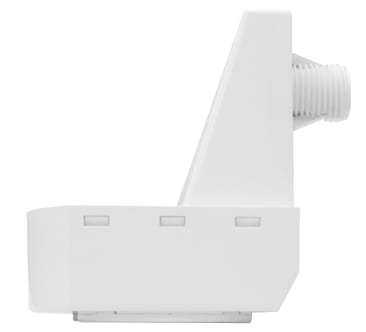

SENSOR SWITCH LSXR 610 Image 1
SENSOR SWITCH LSXR 610 Image 2
content loaded
SENSOR SWITCH LSXR 610 Image 1

SENSOR SWITCH 219EJ9 FIXTURE MOUNT INTERCHANGEABLE LENS 60

MFR Part #: LSXR 610
SKU #: 1224707
Brand: Acuity Brands | Sensor Switch™
UPC: 820476095115
Sensor Switch™ LSXR 610 LSXR Indoor Fixture Mount Occupancy Sensor, 120/208/240/277 VAC, PIR Sensor, 360 deg Viewing, Fixture Mounting
360 deg High Mount and 360 deg Low Mount Lens
Automotive and Parking, Education, Government, Healthcare, Hospitality, Residential, Retail, Roadways, Bridges and Tunnels, Sports and Recreation, Manufacturing, Offices and Banks, Power and Gas, Religious, Transportation and Warehouse Applications
cULus Listed|CSAus Certified

Sensor Switch™, LSXR 610, Fixture Mount Occupancy Sensor, Indoor, Series: LSXR, 120/208/240/277 VAC, 1/4 hp Power, PIR Sensor, 360 deg Viewing, 10 min Time Delay, Fluorescent Lamp, 2-Phase Line Connection, IP66 Enclosure, Fixture Mounting, -10 to 60 deg C, White, 3-3/4 in H x 2-1/2 in W x 4 in D Dimensions

The LSXR is a line voltage fixture mount sensor that provides passive Infrared (PIR) occupancy detection with a radial coverage pattern. The LSXR has 4 available interchangeable lenses that provide flexibility in selection of mounting heights and coverage patterns.

Product Details

Sensor Switch™, LSXR 610, Fixture Mount Occupancy Sensor, Indoor, Series: LSXR, 120/208/240/277 VAC, 1/4 hp Power, PIR Sensor, 360 deg Viewing, 10 min Time Delay, Fluorescent Lamp, 2-Phase Line Connection, IP66 Enclosure, Fixture Mounting, -10 to 60 deg C, White, 3-3/4 in H x 2-1/2 in W x 4 in D Dimensions

The LSXR is a line voltage fixture mount sensor that provides passive Infrared (PIR) occupancy detection with a radial coverage pattern. The LSXR has 4 available interchangeable lenses that provide flexibility in selection of mounting heights and coverage patterns.

Attributes

Color: White
Country Of Origin: Mexico
Connection Type: 2-Phase Line
Dimensions: 3-3/4 in H x 2-1/2 in W x 4 in D
Enclosure Type: IP66
Lamp Type: Fluorescent
Mounting Type: Fixture
Power Rating: 1/4 hp
Sensor Type: PIR
Series: LSXR
Temperature Rating: -10 to 60 deg C
Time Delay: 10 min
Type: Indoor
Viewing Angle: 360 deg
Voltage Rating: 120/208/240/277 VAC

Features

  • ENERGY SAVINGS- LampMaximizer minimum on timer enables usage of shorter occupancy time delays while protecting fluorescent lamp life
  • MOUNTING- Integrated mounting bracket drops lens down 3 in from chase nipple (no bracket accessory required)
  • VOLTAGE- 120-277 VAC (MVOLT)
  • TIME DELAY- Default 10 min occupancy time delay

Resources

Catalog
Specification Sheet
