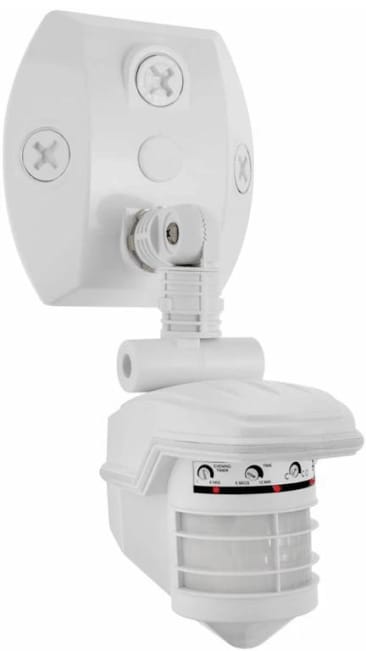

RCL STL360W SUPER STEALTH 360 SENSOR 1000W 120V WHITE
MFR Part #:Â STL360W
SKU #:Â 1080589
Brand:Â RAB Lighting
UPC:Â 019813761213
RAB STL360W Non-Fixture Super Stealth Sensor, 120 VAC, Photoelectric Sensor, 360 deg Viewing, Fixture Mount
10 years
This product may be subject to ecological fees.
Wet Locations and Indoor/Outdoor Applications
UL Listed | cULus Listed
Product Details
Attributes
Features
Resources
RAB Stealth Sensor, Non-Fixture Super, 120 VAC, 8 A, 1000 W Power, Photoelectric Sensor, 360 deg Viewing, 5 s to 12 min Time Delay, Incandescent Lamp, 60 Hz Response, Fixture Mounting, Polycarbonate, White, 4-3/8 in H x 3 in W x 4-3/4 in D Dimensions
Amperage Rating:
8 A
Color:
White
Country Of Origin:
Malaysia
Dimensions:
4-3/8 in H x 3 in W x 4-3/4 in D
Lamp Type:
Incandescent
Material:
Polycarbonate
Mounting Type:
Fixture
Power Rating:
1000 W
Response Frequency:
60 Hz
Sensor Type:
Photoelectric
Time Delay:
5 s to 12 min
Type:
Non-Fixture Super
Viewing Angle:
360 deg
Voltage Rating:
120 VAC
- Senses 180 deg out/360 deg down for total detection
- Radio frequency immunity
- Color matched vandal-resistant lens and grill
- 1000 W switching capacity
- Protected manual override with auto-reset
- Can be wired in parallel
- Pre-wired and pre-assembled on CU4 universal EZ plate
- Quick test time
- Withstands up to 6000 VAC
- Two flip logic prevents activation by momentary power outages, override resets to auto at dawn, no extra wiring needed
- Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
- Circuits fully shielded for maximum radio frequency immunity RF immunity
- Adjustable from 100 to 30% detector sensitivity
- Keeps lights on for 1 to 8 hr after dusk, then sensor is motion activated until dawn
- STL360's full coverage pattern reduces need for aiming and adjustment
- Minimizes false triggers advanced detection logic
- 3 LEDs continually scan back and forth scanning LEDs
Product Details
RAB Stealth Sensor, Non-Fixture Super, 120 VAC, 8 A, 1000 W Power, Photoelectric Sensor, 360 deg Viewing, 5 s to 12 min Time Delay, Incandescent Lamp, 60 Hz Response, Fixture Mounting, Polycarbonate, White, 4-3/8 in H x 3 in W x 4-3/4 in D Dimensions
Attributes
Amperage Rating:Â 8 A
Color:Â White
Country Of Origin:Â Malaysia
Dimensions:Â 4-3/8 in H x 3 in W x 4-3/4 in D
Lamp Type:Â Incandescent
Material:Â Polycarbonate
Mounting Type:Â Fixture
Power Rating:Â 1000 W
Response Frequency:Â 60 Hz
Sensor Type:Â Photoelectric
Time Delay:Â 5 s to 12 min
Type:Â Non-Fixture Super
Viewing Angle:Â 360 deg
Voltage Rating:Â 120 VAC
Features
- Senses 180 deg out/360 deg down for total detection
- Radio frequency immunity
- Color matched vandal-resistant lens and grill
- 1000 W switching capacity
- Protected manual override with auto-reset
- Can be wired in parallel
- Pre-wired and pre-assembled on CU4 universal EZ plate
- Quick test time
- Withstands up to 6000 VAC
- Two flip logic prevents activation by momentary power outages, override resets to auto at dawn, no extra wiring needed
- Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
- Circuits fully shielded for maximum radio frequency immunity RF immunity
- Adjustable from 100 to 30% detector sensitivity
- Keeps lights on for 1 to 8 hr after dusk, then sensor is motion activated until dawn
- STL360's full coverage pattern reduces need for aiming and adjustment
- Minimizes false triggers advanced detection logic
- 3 LEDs continually scan back and forth scanning LEDs
