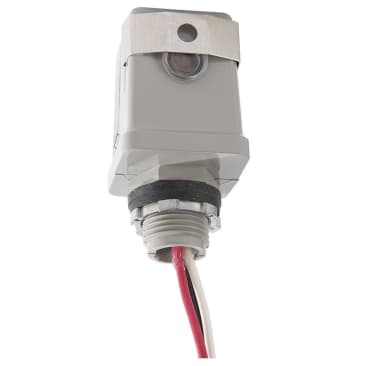

INTERMATIC K4123C Image 1

INTERMATIC K4123C 207-277V 300W STEM MOUNT PHOTO CONTROL

MFR Part #: K4123C
SKU #: 1033223
Brand: Intermatic®
UPC: 078275029590
Intermatic® K4123C K4100 Stem Mounting Photocontrol, 208 to 277 VAC, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, Stem Mount, Polycarbonate
Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting and Dusk to Dawn Lighting Control Applications
UL Recognized|CSA Certified|C/UL Recognized|Title CA 20 Listed|California Title 24 Compliant

Intermatic® Stem Mounting Photocontrol, Series: K4100, 208 to 277 VAC, 15/8.3 A, 50/60 Hz, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, SPST, 30 to 90 s, 18 AWG Wire, Thermal/Cadmium Sulfide Sensor, 1 to 5 FC ON/3 to 15 FC OFF, Environmental Conditions: -40 to 158 deg F Operating Temperature, Stem Mount, Polycarbonate, Gray, 1-9/16 in L x 1-9/16 in W x 3 in H

The K4100 & K4400 series photocontrols feature stem mounting, thermal-type, controls with single and multi-voltage models. thermal-type photocontrols provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching off due to car headlights and lightning. the thermal-type controls feature a cadmium sulfide photocell and a sonic welded polycarbonate case and lens to seal out moisture. the design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes. these models are California title 24 compliant.

Product Details

Intermatic® Stem Mounting Photocontrol, Series: K4100, 208 to 277 VAC, 15/8.3 A, 50/60 Hz, 3100 to 4150 W Tungsten, 1700 to 2300 VA Ballast, SPST, 30 to 90 s, 18 AWG Wire, Thermal/Cadmium Sulfide Sensor, 1 to 5 FC ON/3 to 15 FC OFF, Environmental Conditions: -40 to 158 deg F Operating Temperature, Stem Mount, Polycarbonate, Gray, 1-9/16 in L x 1-9/16 in W x 3 in H

The K4100 & K4400 series photocontrols feature stem mounting, thermal-type, controls with single and multi-voltage models. thermal-type photocontrols provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching off due to car headlights and lightning. the thermal-type controls feature a cadmium sulfide photocell and a sonic welded polycarbonate case and lens to seal out moisture. the design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes. these models are California title 24 compliant.

Attributes

Amperage Rating: 15/8.3 A
Ballast Load: 1700 to 2300 VA
Color: Gray
Contact Form: SPST
Country Of Origin: Mexico
Dimensions: 1-9/16 in L x 1-9/16 in W x 3 in H
Environmental Conditions: -40 to 158 deg F Operating Temperature
Frequency Rating: 50/60 Hz
Material: Polycarbonate
Mounting Type: Stem
Sensitivity: 1 to 5 FC On/3 to 15 FC Off
Sensor Type: Thermal/Cadmium Sulfide
Series: K4100
Timing Range: 30 to 90 s
Tungsten Rating: 3100 to 4150 W
Voltage Rating: 208 to 277 VAC
Wire Size: 18 AWG

Features

  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Delay feature prevents unwanted OFF switching
  • Gray plastic housing
  • 1/2 in-14 NPSM threaded stem
  • Washer gasket and locking nut included

Resources

Specification Sheet
