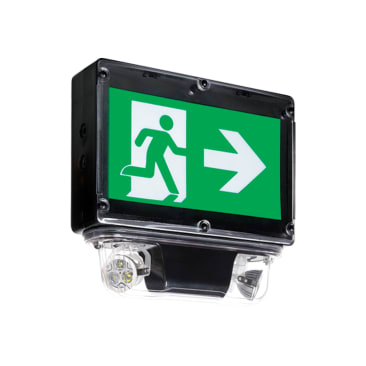

LUMACELL LNC1W6N36LD1 WP LED EXIT UNIVERSAL COMBO PICTOGRAM

Lumacell® Combination Exit Sign Unit, Pictogram Single Face, Series: LNC, 120/347 VAC, 12 VDC, 36 W Fixture, 0.03/0.1 A, LED Lamp, MR16 Lamp Base, 4 W Lamp, 2 Lamps, Legend: ON, NEMA 4X Enclosure, Surface Mounting, Ni-Cd Battery Power Source, Polycarbonate/PVC Housing Material, Factory White Housing Finish, 14 in W x 3-1/2 in D x 12-5/8 in H Dimensions

Lumacell® LNC series combination of unit equipment and pictogram Exit sign. Designed specifically for the industrial environment, the equipment frame shall be of industrial grade polyvinyl chloride with gaskets around both sides of the frame contour. The back plate shall be made of 1/8 in THK aluminum sheet and shall include knock-outs for installation on an electrical box. The faceplates shall be constructed of heavy-duty vandal resistant clear polycarbonate and feature a uniformly illuminated pictogram legend. Each face plate shall come standard with two legend films for pictogram and direction selection. The light source shall be long-life white light-emitting diodes (LED). The unit shall have attached a lower compartment containing two emergency heads with adjustable swivels and long-life MR-16 LED lamps of V and W. The heads shall be installed on a shield housing made of rigid thermoplastic and shall be protected by a shock-absorbent, clear polycarbonate cover. The standard AC input voltage shall be 120/347 VAC. The unit shall be equipped with a magnetic test switch and a LED pilot light protected by the clear face plate. The unit shall perform auto-test functions managed by a micro-controller and shall automatically self-test for one minute every 30 days, 10 min in the 6th month and 30 min annually. When a fault is detected, the bi-color pilot light shall turn from green to red and flash following a particular code. The code description shall be displayed on a label next to the pilot light to identify the failure type: battery, charger circuitry, LED lights for the signage or emergency lights.
