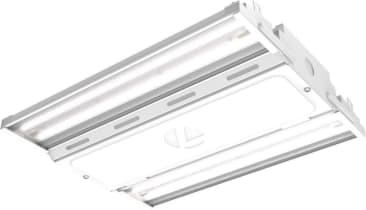

ACUITY CPHB 24LM MVOLT 40K Image 1
ACUITY CPHB 24LM MVOLT 40K Image 2
ACUITY CPHB 24LM MVOLT 40K Image 3
ACUITY CPHB 24LM MVOLT 40K Image 4
ACUITY CPHB 24LM MVOLT 40K Image 5
content loaded
ACUITY CPHB 24LM MVOLT 40K Image 1

ACUITY 2681JE LINEAR 24000 LUMEN HIGH BAY MVOLT

MFR Part #: CPHB 24LM MVOLT 40K
SKU #: 1235529
Brand: Acuity Brands | Lithonia Lighting®
UPC: 00194994429685
Lithonia Lighting® COMPACT PRO™ CPHB 24LM MVOLT 40K Hardwired Rectangular High Bay Fixture, Static LED Lamp, 174 W Fixture, 120 to 277 V, White Housing
5 years Limited
This product may be subject to ecological fees.
Industrial, Retrofit and Warehouses
cCSAus Certified | Damp Location Listed | DLC QPL Listed

Lithonia Lighting® COMPACT PRO™ High Bay Fixture, Hardwired Rectangular, Series: CPHB Series, 120 to 277 V, 174 W Fixture, Static LED Lamp, >135 Lumens/W, 100000 hr Average Life, 4000 K Color, Acrylic Glare Control Lens, 24000 Lumens, Pendant/Surface/Suspended Mount, White Housing, 14.44 in L x 11.52 in W x 2.3 in H

The COMPACT PRO™ High Bay by Lithonia Lighting® delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation. Built with quality to last and performance to get the job don, all at an affordable price.

Product Details

Lithonia Lighting® COMPACT PRO™ High Bay Fixture, Hardwired Rectangular, Series: CPHB Series, 120 to 277 V, 174 W Fixture, Static LED Lamp, >135 Lumens/W, 100000 hr Average Life, 4000 K Color, Acrylic Glare Control Lens, 24000 Lumens, Pendant/Surface/Suspended Mount, White Housing, 14.44 in L x 11.52 in W x 2.3 in H

The COMPACT PRO™ High Bay by Lithonia Lighting® delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation. Built with quality to last and performance to get the job don, all at an affordable price.

Attributes

Color Temperature: 4000 K
Country Of Origin: Mexico
Fixture Wattage: 174 W
Lumens: 24000 Lumens
Mounting Type: Pendant/Surface/Suspended
Average Life: 100000 hr
Dimensions: 14.44 in L x 11.52 in W x 2.3 in H
Housing Finish: White
Lamp Type: Static LED
Lens Type: Acrylic Glare Control
Light Output: >135 Lumens/W
Series: CPHB Series
Type: Hardwired Rectangular
Voltage Rating: 120 to 277 V

Features

  • ENERGY SAVINGS:LEDs provided 80 color rendering index (CRI), nominal 12,000 lumens at 4000K with a cool white color temperature
  • DIMMING: Thermally protected driver standard with 0-10V dimming
  • The Compact Pro High Bay by Lithonia Lighting delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation
  • Built with quality to last and performance to get the job done at an affordable price for an base-level product
  • Fixture is suitable for mounting by chain, cable, surface-mount bracket, pendant monopoint, or hook monopoint
  • LED emergency driver sold separetly
  • TECHNOLOGY - Glare reduction optics featuring WhiteOptics Technology allowing for maximum light output while reducing glare
  • VOLTAGE - Multi-volt driver, 120-277V standard
  • HOURS OF LIFE - 70 Percent lumen maintenance at greater than 100000 hr

Resources

Instruction/Installation Manual
Specification Sheet
