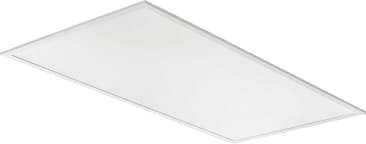

LITHONIA CPX 2X4 4000LM 40K M2 Image 1

LITHONIA 2628G1 FLT PNL 2X4 NMNL 4KLM CPX 2X4 4000LM 40K M2

MFR Part #: CPX 2X4 4000LM 40K M2
SKU #: 1224556
Brand: Acuity Brands | Lithonia Lighting®
UPC: 191848338506
Lithonia Lighting® CPX 2X4 4000LM 40K M2 CPX™ Rectangular Flat Panel, Static LED Lamp, 40 W Fixture, 120 to 277 V, Aluminum Housing
5 years Limited
Offices, Schools, Retail, Convenience Stores, Hospitals, Healthcare Facilities and Other Commercial Space Applications
DLC Standard | CSA Certified for Damp Location | ETL Listed | IC Certified

Lithonia Lighting®, CPX 2X4 4000LM 40K M2, Flat Panel, Rectangular, Series: CPX™, 120 to 277 V, 40 W Fixture, Static LED Lamp, 100 Lumens/W Light Output, 50000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 V Dimming Driver Ballast, Acrylic Lens, 4000 Lumens, Ceiling/Surface Mounting, Aluminum Housing Material, 4 ft L x 2 ft W x 1.68 in D Dimensions

The low glare, ambient lighting solution is available in 2 x 2 ft and 2 x 4 ft configurations and features an external driver. The CPX™ LED flat panel is ideal for applications such convenience stores, small retail and back of house spaces.

Product Details

Lithonia Lighting®, CPX 2X4 4000LM 40K M2, Flat Panel, Rectangular, Series: CPX™, 120 to 277 V, 40 W Fixture, Static LED Lamp, 100 Lumens/W Light Output, 50000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 V Dimming Driver Ballast, Acrylic Lens, 4000 Lumens, Ceiling/Surface Mounting, Aluminum Housing Material, 4 ft L x 2 ft W x 1.68 in D Dimensions

The low glare, ambient lighting solution is available in 2 x 2 ft and 2 x 4 ft configurations and features an external driver. The CPX™ LED flat panel is ideal for applications such convenience stores, small retail and back of house spaces.

Attributes

Color Temperature4000 K
Country Of OriginVietnam
Dimensions4 ft L x 2 ft W x 1.68 in D
Fixture Wattage40 W
Lumens4000 Lumens
Average Life50000 hr
Ballast Type0 to 10 V Dimming Driver
Color Rendering Index (CRI)80
Housing MaterialAluminum
Lamp TypeStatic LED
Lens TypeAcrylic
Light Output100 Lumens/W
Mounting TypeCeiling/Surface
SeriesCPX™
TypeRectangular
Voltage Rating120 to 277 V

Features

  • Designed for versatility, the CLX can address virtually any indoor lighting need
  • Channel and cover are formed from code gauge cold rolled steel
  • Housing and lens end caps are injection molded plastic to provide a more architectural look and feel
  • Utilizes high output LEDs integrated on a two layer circuit board, ensuring cool running operation
  • The CLX is also offered in standard and high efficacy configurations and capable of being continuous row mounted or installed as a stand alone fixture
  • The CLX LED flat diffuse lens strip light from Lithonia Lighting pushes the limits of what a strip light can be with its industry-leading performance, polished aesthetics and multiple control options while providing consistent light output for more demanding environments
  • Replaces 3 -lamp 32WT8, 2-lamp 54W T5HO, 100W HID only using up to 70.8 W
  • MVOLT and dimmable, LED strip lights have 0-10V dimming capability which allows you to control how much light is needed
  • Funtions between 120 and 277 V range and fixture may be ceiling or wall mounted (with or without THCLX hanger or angle mounted with CLXANGBRT), pendant or stem mounted with appropriate mounting ohardware
  • Emergency battery back-up not included in this version
  • LEDs provided 80 color rendering index (CRI), 14000 lumens at 4000K with a cool white color temperture
