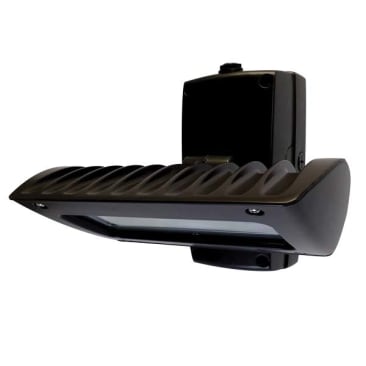

RAB 099600 Image 1

RAB 099600 VEK1-LED35-A-5K-BRZ-PC-DIM

MFR Part #: 099600
SKU #: 1136088
Brand: RAB® Design Lighting
UPC: 61184996008
Please note this item is discontinued (order fulfillment will depend on stock availability): RAB® 099600 VEK1-LED35 Adjustable Multi-Purpose Wall Light, LED Lamp, 120 V, Bronze Housing
5 years
This product may be subject to ecological fees.
Photocell and Tamperproof Hardware
Outdoor Walls Along Perimeters of Buildings, Loading Docks, Apartment Buildings, Townhouse Complexes, Condominiums, Schools and Uplight in Indoor/Canopy Applications
cULus Listed for Wet Locations | DLC Listed

RAB® Wall Light, Adjustable Multi-Purpose, Series: VEK1-LED35, 120 V, LED Lamp, 35 W Lamp, 122 Lumens/W Light Output, 100000 hr Average Life, 5000 K Color Temperature, >70 CRI, 0 to 10 VDC Dimming Ballast, Clear Tempered Glass Lens, 4195 Lumens, Surface Mounting, Die-Cast Aluminum Housing Material, Bronze Housing Finish, 10.886 in L x 9.76 in W x 10.88 in H Dimensions

The VEK-LED series fixtures provide superior lighting performance, serving as ideal replacements for traditional wallpacks and floods. The VEK-LED series comes complete with a photocell and is available in 120 or 277 V. Standard finish is bronze or white. Ideal for use on building perimeters, loading docks, schools, townhouse complexes and apartment buildings.

Product Details

RAB® Wall Light, Adjustable Multi-Purpose, Series: VEK1-LED35, 120 V, LED Lamp, 35 W Lamp, 122 Lumens/W Light Output, 100000 hr Average Life, 5000 K Color Temperature, >70 CRI, 0 to 10 VDC Dimming Ballast, Clear Tempered Glass Lens, 4195 Lumens, Surface Mounting, Die-Cast Aluminum Housing Material, Bronze Housing Finish, 10.886 in L x 9.76 in W x 10.88 in H Dimensions

The VEK-LED series fixtures provide superior lighting performance, serving as ideal replacements for traditional wallpacks and floods. The VEK-LED series comes complete with a photocell and is available in 120 or 277 V. Standard finish is bronze or white. Ideal for use on building perimeters, loading docks, schools, townhouse complexes and apartment buildings.

Attributes

Color Temperature: 5000 K
Country Of Origin: China
Lumens: 4195 Lumens
Average Life: 100000 hr
Ballast Type: 0 to 10 VDC Dimming
Color Rendering Index (CRI): >70
Dimensions: 10.886 in L x 9.76 in W x 10.88 in H
Housing Finish: Bronze
Housing Material: Die-Cast Aluminum
Lamp Type: LED
Lamp Wattage: 35 W
Lens Type: Clear Tempered Glass
Light Output: 122 Lumens/W
Mounting Type: Surface
Series: VEK1-LED35
Type: Adjustable Multi-Purpose
Voltage Rating: 120 V

Features

  • Precision die-cast aluminum housing with durable chip and fade resistant bronze powder coat finish
  • Five conduit entries
  • Rebel LED's with cast aluminum thermal management for optimal heat sinking
  • Replaces up to 175 W/250 W/400 W MH

Resources

Instruction/Installation Manual
Specification Sheet
