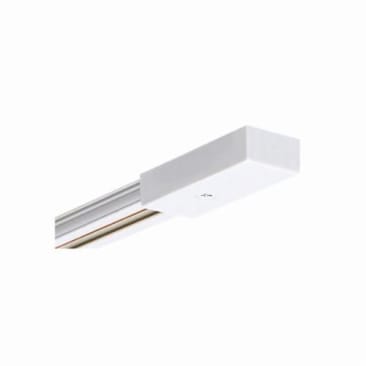

JUNO TLV 4FT WH Image 1
JUNO TLV 4FT WH Image 2
content loaded
JUNO TLV 4FT WH Image 1

JUNO TL4-WH LV TRAC12-ASSEMBLY 4FT WHITE

MFR Part #: TLV 4FT WH
SKU #: 0692703
Brand: Acuity Brands | Juno®
UPC: 661209952318
Juno® Trac 12™ TLV 4FT WH Low Voltage Miniature Trac System, 4 ft L x 3/4 in W x 3/8 in D, Extruded ABS/Polycarbonate
UL Listed | CSA Certified

Juno® Trac 12™ Trac System, Low Voltage Miniature, Series: TLV, 4 ft Length, 3/4 in Width, 3/8 in Depth, For Use With: 12/24 VAC Step Down Transformer, Extruded ABS/Polycarbonate, White, 44-5/8 in L Dimensions

Juno Trac 12 offers ultra-miniature, single-circuit trac sections for operation with 12- or 24-volt step down transformers. Each trac section is supplied with an integral terminal block feed and straight connector. It is compatible with a right-angle, adjustable joiner plus conduit and J-box mounting accessories to permit NEC code-compliant installations. Accepts all Trac 12 cove, accent, and pendant lamp holders.

Product Details

Juno® Trac 12™ Trac System, Low Voltage Miniature, Series: TLV, 4 ft Length, 3/4 in Width, 3/8 in Depth, For Use With: 12/24 VAC Step Down Transformer, Extruded ABS/Polycarbonate, White, 44-5/8 in L Dimensions

Juno Trac 12 offers ultra-miniature, single-circuit trac sections for operation with 12- or 24-volt step down transformers. Each trac section is supplied with an integral terminal block feed and straight connector. It is compatible with a right-angle, adjustable joiner plus conduit and J-box mounting accessories to permit NEC code-compliant installations. Accepts all Trac 12 cove, accent, and pendant lamp holders.

Attributes

Color: White
Country Of Origin: US
Depth: 3/8 in
Dimensions: 44-5/8 in L
Length: 4 ft
Material: Extruded ABS/Polycarbonate
Series: TLV
Suitable For Use With: 12/24 VAC Step Down Transformer
Type: Low Voltage Miniature
Width: 3/4 in

Features

  • Strong, heat resistant housing
  • Injection molded polycarbonate terminal block end-feed and straight connector assembly with decorative cover
  • Standard lengths may be cut to length by installer
  • Two 12 gauge solid copper conductors
  • Injection molded polycarbonate dead-end with set screw
  • Rated 20 A at 12 or 24 VAC
  • Supplied with toggle bolts for surface mounting

Resources

Instruction/Installation Manual
Specification Sheet
