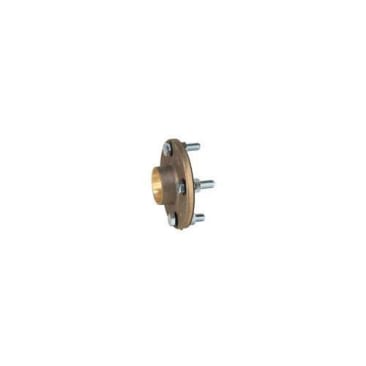

WATTS 0121305 LF3110-LF 4 DIELECTRIC FLANGE
Product Details
Attributes
Features
Resources
WATTS® Dielectric Flanged Pipe Fitting, 4 in Nominal, Solder, 175 psi, 180 deg F, 9 in Dia, Domestic
This 4 in lead free class 125 dielectric flange pipe fitting is designed for commercial and residential applications such as the connections of piping of dissimilar metals on a hot water storage tank, water and air conditioners, processing tanks, steam, gas and water piping to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is suitable for water, air, oil, natural gas, propane, gasoline, kerosene, mineral oil, vegetable oil and alkaline. It consists of a single bronze body tailpiece with solder cast copper connection with a Buna-N gasket and hardware. The maximum temperature is rated up to 180 deg F. The maximum pressure is rated at 175 psi.
- Designed and manufactured to the highest quality standards
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Maximum pressure is 175 psi (12.1 bar)
- Maximum temperature 180 deg F (82 deg C)
- Solder copper connection
Product Details
WATTS® Dielectric Flanged Pipe Fitting, 4 in Nominal, Solder, 175 psi, 180 deg F, 9 in Dia, Domestic
This 4 in lead free class 125 dielectric flange pipe fitting is designed for commercial and residential applications such as the connections of piping of dissimilar metals on a hot water storage tank, water and air conditioners, processing tanks, steam, gas and water piping to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is suitable for water, air, oil, natural gas, propane, gasoline, kerosene, mineral oil, vegetable oil and alkaline. It consists of a single bronze body tailpiece with solder cast copper connection with a Buna-N gasket and hardware. The maximum temperature is rated up to 180 deg F. The maximum pressure is rated at 175 psi.
Attributes
Features
- Designed and manufactured to the highest quality standards
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Maximum pressure is 175 psi (12.1 bar)
- Maximum temperature 180 deg F (82 deg C)
- Solder copper connection
