BRASSCRAFT WB034-12N Image 1
BRASSCRAFT WB034-12N Image 2
BRASSCRAFT WB034-12N Image 3
BRASSCRAFT WB034-12N Image 4
content loaded
BRASSCRAFT WB034-12N Image 1

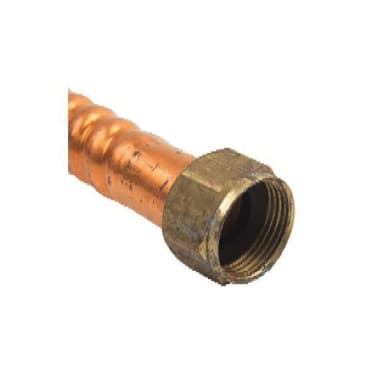

BRASSCRAFT WB034-12N 3/4X12 FIPXSWT CORRUGATED WATER HEATER SUPPLY CONNECTOR

MFR Part #: WB034-12N
SKU #: 0431141
Brand: BrassCraft®
UPC: 026613089409
BrassCraft® Copper-Flex™ WB034-12N Water Heater Connector, 3/4 in Nominal, FNPT x Male/Female C End Style, 12 in L, 125 psi Working, Corrugated Copper, Domestic
Residential and Commercial
PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

BrassCraft® Copper-Flex™ Lead Free Water Heater Connector, Series: WB034, 3/4 in Nominal, FNPT x Male/Female C, 7/8 in Inside Dia, 7/8 in Outside Dia, 12 in Length, 125 psi Working, 40 to 180 deg F, Corrugated Copper, Domestic

BrassCraft® Copper-Flex™ 3/4 in Female Iron Pipe inlet x 3/4 in Nominal Female/Male C outlet water heater connectors. Used to connect the water supply to your water heater, this connector features an integrated dielectric sleeve, the sleeve isolates dissimilar metals within the waterway, where galvanic and electrolytic corrosion have their greatest potential. This separation provides complete protection against galvanic corrosion that can deteriorate the connector and cause leaks.

Product Details

BrassCraft® Copper-Flex™ Lead Free Water Heater Connector, Series: WB034, 3/4 in Nominal, FNPT x Male/Female C, 7/8 in Inside Dia, 7/8 in Outside Dia, 12 in Length, 125 psi Working, 40 to 180 deg F, Corrugated Copper, Domestic

BrassCraft® Copper-Flex™ 3/4 in Female Iron Pipe inlet x 3/4 in Nominal Female/Male C outlet water heater connectors. Used to connect the water supply to your water heater, this connector features an integrated dielectric sleeve, the sleeve isolates dissimilar metals within the waterway, where galvanic and electrolytic corrosion have their greatest potential. This separation provides complete protection against galvanic corrosion that can deteriorate the connector and cause leaks.

Attributes

Country Of Origin: US
Length: 12 in
Domestic/Import: Domestic
End Style: FNPT x Male/Female C
Inside Diameter: 7/8 in
Material: Corrugated Copper
Nominal Size: 3/4 in
Outside Diameter: 7/8 in
Series: WB034
Temperature Rating: 40 to 180 deg F
Working Pressure: 125 psi

Features

  • For use in exposed locations only to connect water heaters and other water connected devices to the water supply
  • Patented internal dielectric sleeve effectively isolates dissimilar metals within the waterway to prevent galvanic corrosion
  • No dielectric union needed, the integrated dielectric sleeve eliminates the need to install an additional dielectric union, reducing time and installation costs
  • Requires less torque to seal with a pliable Nitrile rubber washer, especially on rough nipple surfaces
  • Longer connector nuts allow a greater number of thread-to-thread contacts and a better seal
  • Engineered and tested for harsh water conditions
  • For use Indoor
  • 180 deg F intermittent temperature

Resources

Instruction/Installation Manual
Specification Sheet
