ABB TC10323R Image 1

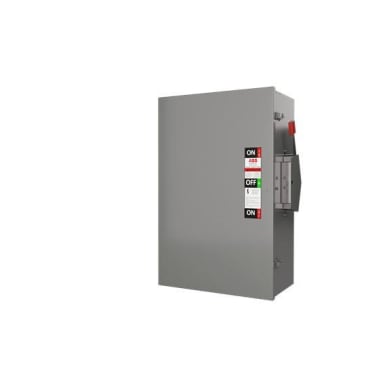

ABB TC10323R TRANSFER SWITCH 100A 2P 120/240V N3R NONFUSED

MFR Part #: TC10323R
SKU #: 1243592
Brand: ABB | GE Industrial Solutions
UPC: 783164000337
GE Spec-Setter™ TC10323R TC Series 3-Phase Non-Fusible Double Throw Emergency Power Transfer Switch, 120/240 VAC, 100 A, 7 hp Power Rating, NEMA 3R Enclosure
For electrical distribution and control, residential or light commercial applications where duty is not severe and double throw applications
UL 98|CSA C22.2 No. 4-04|Federal Specification W-S-865C|NEMA KS1 - 2013|Seismic Certified

GE Spec-Setter™ Emergency Power Transfer Switch, 3-Phase Non-Fusible Double Throw, Series: TC Series, 120/240 VAC, 100 A, 7 hp Power, 2 Pole, NEMA 3R Enclosure, 60/75 deg C, Steel, Galvanized, 15.1 in H x 7.2 in W x 5.2 in D Dimensions

Designed for outdoor rural dwellings and farm buildings to allow connection to a standby generator. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the national electrical code suitable for use as transfer equipment in standby systems in accordance with article 702 of the national electrical code non-fusible. 60/75 deg C conductor rating lockable handle in on or off position galvanized steel construction.

Product Details

GE Spec-Setter™ Emergency Power Transfer Switch, 3-Phase Non-Fusible Double Throw, Series: TC Series, 120/240 VAC, 100 A, 7 hp Power, 2 Pole, NEMA 3R Enclosure, 60/75 deg C, Steel, Galvanized, 15.1 in H x 7.2 in W x 5.2 in D Dimensions

Designed for outdoor rural dwellings and farm buildings to allow connection to a standby generator. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the national electrical code suitable for use as transfer equipment in standby systems in accordance with article 702 of the national electrical code non-fusible. 60/75 deg C conductor rating lockable handle in on or off position galvanized steel construction.

Attributes

Amperage Rating: 100 A
Dimensions: 15.1 in H x 7.2 in W x 5.2 in D
Enclosure Type: NEMA 3R
Finish: Galvanized
Material: Steel
Number of Poles: 2
Power Rating: 7 hp
Series: TC Series
Temperature Rating: 60/75 deg C
Type: 3-Phase Non-Fusible Double Throw
Voltage Rating: 120/240 VAC

Features

  • Plated copper current carrying parts increase longevity and performance
  • Bonding strap can be used to ground neutral for service entrance applications
  • Positive make and break is provided by fiber loop straps between knife blade contacts and 1-piece operating yoke
  • Lockable 3-position (ON-OFF-ON) handle
  • Galvanized steel enclosure with drip shield
  • Not quick-make, quick-break

Resources

Specification Sheet
