MILWAUKEE 2788-22HD Image 1

MILWAUKEE 2788-22HD M18 FUEL 1-1/2 LNMN MGNTC DRL HI DMND KT

MFR Part #: 2788-22HD
SKU #: 1171926
Brand: Milwaukee®
UPC: 045242478835
Milwaukee® M18™ FUEL™ 2788-22HD Magnetic Drill Kit, 3/4 in Chuck, 18 VDC, 400/690 rpm No-Load, Li-Ion Battery
5 years

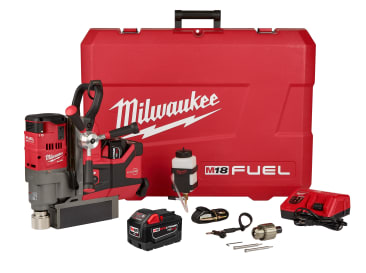

M18™ FUEL™ 1-1/2 in Lineman Magnetic Drill High Demand™, (2) REDLITHIUM™ HIGH DEMAND™ M18™ 48-11-1890 9.0 Battery Pack, Safety Strap, Magnetic Lubrication Tank, Chuck Key, Carrying Case, AC/DC Vehicle Charger, 3/4 in Weldon to 1/2 in Chuck adapter and (2) 1 in Retractable Pilot Pin
UL Listed

Milwaukee® M18™ FUEL™ Magnetic Drill Kit, 3/4 in Chuck, 400/690 rpm No-Load, 2 Speed, 18 VDC, Li-Ion Battery, 9 Ah Battery, Battery Included: Yes, Black/Red, 13-3/4 in L x 7-1/2 in W x 15-1/2 in H Dimensions

The M18 FUEL™ 1-1/2 in. magnetic drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4 in. steel providing a safer drilling environment in this material, and drills over (66) 13/16 in. holes per charge. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with AutoStop™ lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a MILWAUKEE® POWERSTATE™ brushless motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2 in. annular cutter capacity. REDLINK PLUS™ intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery pack provides 50% more power and runs 50% cooler vs REDLITHIUM™ XC batteries. It maintains full power and runs substantially cooler through heavy applications, allowing users to push their cordless tools harder and longer than ever before. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery is fully compatible with 200+ M18™ tools.

Product Details

Milwaukee® M18™ FUEL™ Magnetic Drill Kit, 3/4 in Chuck, 400/690 rpm No-Load, 2 Speed, 18 VDC, Li-Ion Battery, 9 Ah Battery, Battery Included: Yes, Black/Red, 13-3/4 in L x 7-1/2 in W x 15-1/2 in H Dimensions

The M18 FUEL™ 1-1/2 in. magnetic drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4 in. steel providing a safer drilling environment in this material, and drills over (66) 13/16 in. holes per charge. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with AutoStop™ lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a MILWAUKEE® POWERSTATE™ brushless motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2 in. annular cutter capacity. REDLINK PLUS™ intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery pack provides 50% more power and runs 50% cooler vs REDLITHIUM™ XC batteries. It maintains full power and runs substantially cooler through heavy applications, allowing users to push their cordless tools harder and longer than ever before. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery is fully compatible with 200+ M18™ tools.

Attributes

Bare Tool/KitKit
Battery Capacity9 Ah
Battery IncludedYes
Battery TypeLi-Ion
Chuck Size3/4 in
ColorBlack/Red
Country Of OriginChina
Dimensions13-3/4 in L x 7-1/2 in W x 15-1/2 in H
No-Load Speed400/690 rpm
Number of Speeds2
Voltage Rating18 VDC

Features

  • POWERSTATE™ brushless motor delivers maximum power and provides up to 2X longer motor life
  • REDLINK PLUS™ Intelligence provides optimized performance and overload protection using total system communication between tool, battery and charger
  • M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 battery delivers over (66) 13/16 in holes in 1/4 in steel per charge
  • Self-powered magnet base operates independently of power source and delivers up to 2000 lb of holding force
  • 1-1/2 in annular cutter capacity 1/2 in twist bit capacity
  • 5-3/4 in stroke length
  • Motor head adjustment 5-1/8 in
