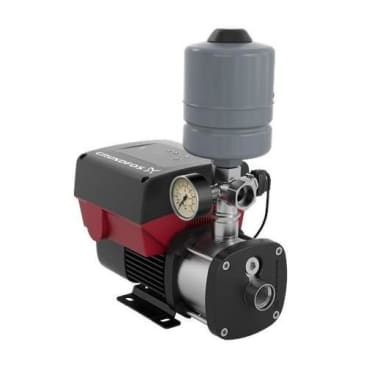

GRUNDFOS 98810910 CMBE 1-44 .75HP 120V MULTI-STG BOOSTER SYS
Product Details
Attributes
Features
Resources
Grundfos Centrifugal Booster Pump, Compact Multi-Stage, Series: CMBE, 8.81 gpm, 1 in NPT Inlet, 1 in NPT Outlet, 5.95 ft Maximum Suction Lift, 1.012 hp, 115 VAC, 50 Hz, 1 ph, 360 to 4000 rpm Motor, (3) 304 Stainless Steel Impeller, Horizontal Mount, 113 deg F Ambient, IP55, 304 Stainless Steel, 12.83 in L x 8.54 in W x 17.32 in H
The CMBE Booster is designed for domestic and commercial water supply, pressure boosting, irrigation and dewatering applications. The CMBE series is available in both (1) 110 to 120 VAC and (1) 200 to 240 VAC variants and uses energy efficient, permanent magnet motor technology, which provides unmatched reliability, quiet operation and energy savings. Thanks to the integrated speed controller, the CMBE keeps a constant pressure in the pipe system. A pressure sensor monitoring discharge pressure will signal to the speed controller to change the motor speed to adapt the performance to the new situation.
- Constant pressure via integrated speed control
- Robust, stainless steel design
- Easy installation
- Low energy consumption
- Dry running protection
- Noise level below 55 dBA and even lower at controlled speed
- Five way fitting with non-return valve
- Diaphragm tank
- Pressure gauge
- Pressure sensor
- High-efficiency motor with frequency converter (IP55)
- US cable and NEMA 5-15 plug
- O-ring shaft seal with fixed driver, silicon carbide rotating seal face, silicon carbide stationary seal face and EPDM secondary seal
Product Details
Grundfos Centrifugal Booster Pump, Compact Multi-Stage, Series: CMBE, 8.81 gpm, 1 in NPT Inlet, 1 in NPT Outlet, 5.95 ft Maximum Suction Lift, 1.012 hp, 115 VAC, 50 Hz, 1 ph, 360 to 4000 rpm Motor, (3) 304 Stainless Steel Impeller, Horizontal Mount, 113 deg F Ambient, IP55, 304 Stainless Steel, 12.83 in L x 8.54 in W x 17.32 in H
The CMBE Booster is designed for domestic and commercial water supply, pressure boosting, irrigation and dewatering applications. The CMBE series is available in both (1) 110 to 120 VAC and (1) 200 to 240 VAC variants and uses energy efficient, permanent magnet motor technology, which provides unmatched reliability, quiet operation and energy savings. Thanks to the integrated speed controller, the CMBE keeps a constant pressure in the pipe system. A pressure sensor monitoring discharge pressure will signal to the speed controller to change the motor speed to adapt the performance to the new situation.
Attributes
Features
- Constant pressure via integrated speed control
- Robust, stainless steel design
- Easy installation
- Low energy consumption
- Dry running protection
- Noise level below 55 dBA and even lower at controlled speed
- Five way fitting with non-return valve
- Diaphragm tank
- Pressure gauge
- Pressure sensor
- High-efficiency motor with frequency converter (IP55)
- US cable and NEMA 5-15 plug
- O-ring shaft seal with fixed driver, silicon carbide rotating seal face, silicon carbide stationary seal face and EPDM secondary seal
