LITTLE GIANT 587400 TE-7-MD-SC
MFR Part #:Â 587400
SKU #:Â 1154086
Brand: Little Giant®
UPC:Â 010121874008

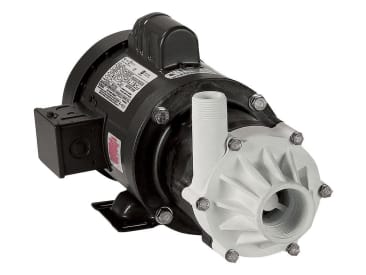

LittleGIANT® 587400 MD-SC Magnetic Drive Pump, 53 gpm Flow Rate, 1.5 in Inlet, 230 VAC, 150 deg F
1 Year
Designed for In-Line, Non-Submersed Use
Product Details
Attributes
Features
Resources
LittleGIANT®, 587400, Magnetic Drive Pump, Series: MD-SC, 53 gpm Flow Rate, 1.5 in Inlet, 1230 W Power, 230 VAC, 11.8 A, 60 Hz Frequency, 25.5 psi Maximum, Polypropylene Impeller, 150 deg F, Plastic/Thermoplastic, 8.5 in H x 8.5 in W x 17.18 in L Dimensions
Amperage Rating:
11.8 A
Dimensions:
8.5 in H x 8.5 in W x 17.18 in L
Flow Rate:
53 gpm
Frequency Rating:
60 Hz
Impeller Type:
Polypropylene
Inlet Size:
1.5 in
Material:
Plastic/Thermoplastic
Maximum Pressure:
25.5 psi
Power Rating:
1230 W
Series:
MD-SC
Temperature Rating:
150 deg F
Voltage Rating:
230 VAC
- 3/4 hp TEFC motor
- Glass-filled polyphenylene sulfide backplate
- Glass-filled polypropylene volute
- 1.1 specific gravity
- Nitrile O-ring
- Ceramic thrust washers and shaft
Product Details
LittleGIANT®, 587400, Magnetic Drive Pump, Series: MD-SC, 53 gpm Flow Rate, 1.5 in Inlet, 1230 W Power, 230 VAC, 11.8 A, 60 Hz Frequency, 25.5 psi Maximum, Polypropylene Impeller, 150 deg F, Plastic/Thermoplastic, 8.5 in H x 8.5 in W x 17.18 in L Dimensions
Attributes
Amperage Rating:Â 11.8 A
Dimensions:Â 8.5 in H x 8.5 in W x 17.18 in L
Flow Rate:Â 53 gpm
Frequency Rating:Â 60 Hz
Impeller Type:Â Polypropylene
Inlet Size:Â 1.5 in
Material:Â Plastic/Thermoplastic
Maximum Pressure:Â 25.5 psi
Power Rating:Â 1230 W
Series:Â MD-SC
Temperature Rating:Â 150 deg F
Voltage Rating:Â 230 VAC
Features
- 3/4 hp TEFC motor
- Glass-filled polyphenylene sulfide backplate
- Glass-filled polypropylene volute
- 1.1 specific gravity
- Nitrile O-ring
- Ceramic thrust washers and shaft
