LITTLE GIANT 588205 1-EUAA-MD
MFR Part #:Â 588205
SKU #:Â 1154092
Brand: Little Giant®
UPC:Â 010121882058

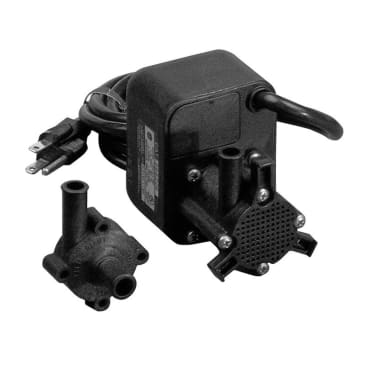

Little Giant® 588205 In-Line Submersible Magnetic Drive Pump, 2.5 gpm Flow Rate, 1/2 in OD Inlet x 1/2 in OD Outlet, 115 VAC, 150 deg F
For circulation of mildly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions and other mildly corrosive chemicals and solutions that are compatible with the pump's material of construction
cCSAus Certified | UL Listed
Product Details
Attributes
Features
Resources
Little Giant® Magnetic Drive Pump, In-Line Submersible, 2.5 gpm Flow Rate, 1/2 in OD Inlet, 1/2 in OD Outlet, 17 W Power, 115 VAC, 0.3 A, 60 Hz Frequency, 2.2 psi Maximum, Glass-Filled Polypropylene Impeller, 150 deg F, Glass Filled Polypropylene, 4.8 in L x 2.8 in W x 3.6 in H Dimensions
Amperage Rating:
.3 A
Country Of Origin:
Mexico
Dimensions:
4.8 in L x 2.8 in W x 3.6 in H
Flow Rate:
2.5 gpm
Frequency Rating:
60 Hz
Impeller Type:
Glass-Filled Polypropylene
Inlet Size:
1/2 in OD
Material:
Glass Filled Polypropylene
Maximum Pressure:
2.2 psi
Outlet Size:
1/2 in OD
Power Rating:
17 W
Temperature Rating:
150 deg F
Type:
In-Line Submersible
Voltage Rating:
115 VAC
- 1/200 hp encapsulated motor
- Glass-filled polypropylene magnet housing
- Glass-filled polypropylene volute
- 1.1 specific gravity
- Nitrile O-ring
- PTFE thrust washers
- Ceramic shaft
Product Details
Little Giant® Magnetic Drive Pump, In-Line Submersible, 2.5 gpm Flow Rate, 1/2 in OD Inlet, 1/2 in OD Outlet, 17 W Power, 115 VAC, 0.3 A, 60 Hz Frequency, 2.2 psi Maximum, Glass-Filled Polypropylene Impeller, 150 deg F, Glass Filled Polypropylene, 4.8 in L x 2.8 in W x 3.6 in H Dimensions
Attributes
Amperage Rating:Â .3 A
Country Of Origin:Â Mexico
Dimensions:Â 4.8 in L x 2.8 in W x 3.6 in H
Flow Rate:Â 2.5 gpm
Frequency Rating:Â 60 Hz
Impeller Type:Â Glass-Filled Polypropylene
Inlet Size:Â 1/2 in OD
Material:Â Glass Filled Polypropylene
Maximum Pressure:Â 2.2 psi
Outlet Size:Â 1/2 in OD
Power Rating:Â 17 W
Temperature Rating:Â 150 deg F
Type:Â In-Line Submersible
Voltage Rating:Â 115 VAC
Features
- 1/200 hp encapsulated motor
- Glass-filled polypropylene magnet housing
- Glass-filled polypropylene volute
- 1.1 specific gravity
- Nitrile O-ring
- PTFE thrust washers
- Ceramic shaft
