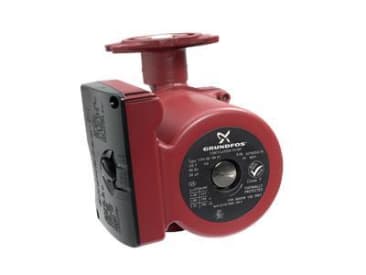

GRUNDFOS 52722512 1/6HP 115V CI 3SP CP W/CV UPS26-99FC
MFR Part #:Â 52722512
SKU #:Â 1027951
Brand:Â Grundfos
UPC:Â 5700834818707
Grundfos 52722512 UPS Circulator Pump, 33 gpm Flow Rate, 115 VAC, 1 ph
CSA Certified|UL Listed
Product Details
Attributes
Features
Resources
Grundfos Circulator Pump, Series: UPS, 33 gpm, 28.87 ft Maximum Head, 197 W, 115 VAC, 1.3 to 1.8 A, 60 Hz, 1 ph, 145 psi Maximum, 3380 rpm Motor, 104 deg F, 6 in W x 6-1/2 in H
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
Amperage Rating:
1.3 to 1.8 A
Country Of Origin:
US
Dimensions:
6 in W x 6-1/2 in H
Flow Rate:
33 gpm
Frequency Rating:
60 Hz
HP Rating:
1/6 hp
Maximum Head:
28.87 ft
Maximum Pressure:
145 psi
Motor Speed:
3380 rpm
Phase:
1
Power Rating:
197 W
Series:
UPS
Temperature Rating:
104 deg F
Voltage Rating:
115 VAC
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion resistant impeller, composite, PES
- Cast iron pump housing
- 1 ph motor, no additional motor protection is required
Product Details
Grundfos Circulator Pump, Series: UPS, 33 gpm, 28.87 ft Maximum Head, 197 W, 115 VAC, 1.3 to 1.8 A, 60 Hz, 1 ph, 145 psi Maximum, 3380 rpm Motor, 104 deg F, 6 in W x 6-1/2 in H
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
Attributes
Amperage Rating:Â 1.3 to 1.8 A
Country Of Origin:Â US
Dimensions:Â 6 in W x 6-1/2 in H
Flow Rate:Â 33 gpm
Frequency Rating:Â 60 Hz
HP Rating:Â 1/6 hp
Maximum Head:Â 28.87 ft
Maximum Pressure:Â 145 psi
Motor Speed:Â 3380 rpm
Phase:Â 1
Power Rating:Â 197 W
Series:Â UPS
Temperature Rating:Â 104 deg F
Voltage Rating:Â 115 VAC
Features
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion resistant impeller, composite, PES
- Cast iron pump housing
- 1 ph motor, no additional motor protection is required
