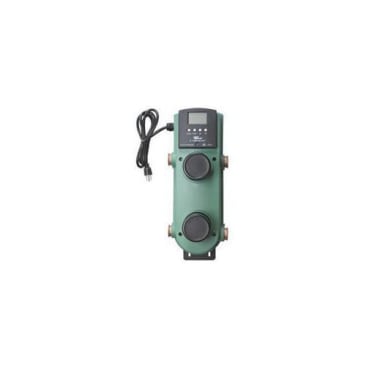

TACO XPB-1 ISOLATION PACKAGE
Product Details
Attributes
Features
Resources
Taco®, XPB-1, X-Pump Block, Series: XPB, 0 to 7.5 gpm Flow Rate, 0 to 15-1/2 ft Head, 120 VAC, 2 A, 60 Hz Frequency, 1 ph, 3250 rpm Speed, 2 at 1/25 hp, 32 to 185 deg F, 125 psi Pressure, 3/4 in NPT Connection, Bronze, 6-3/4 in L x 9-5/8 in W x 18-3/8 in H Dimensions
The Taco X-Pump Block® (XPB) is another breakthrough in the design, control and installation of radiant systems that delivers unmatched flexibility in a single unit. It is equally effective when used with open or closed systems, barrier or non-barrier tubing and where the system heat source is a boiler or water heater. The Taco X-Pump Block combines a variable speed mixing control, a heat source circulator, system circulator and heat exchanger in a single unit. This combination delivers complete system isolation between the heat generation side of the system and the heat delivery side, whether radiant tubing, glycol based snowmelt, baseboard and more.
- All-in-one heat exchanger, dual-sided circulators and mixing control package
- Use as outdoor reset control, set point control or a delta limiting control
- Requires only four pipe connections for complete installation
- Doesn't require special piping, balancing valve, closely spaced tees, external control or complex wiring
- Plug-in low voltage connections
- Solid state microprocessor design
- Replaceable cartridge design
- Maintenance-free wet-rotor circulators
- Bronze casing for open or closed systems
- Auto pump exercise
- Adjustable reset ratio
- Warm weather shutdown
- Large LCD display
- Requires no outside power supply
Product Details
Taco®, XPB-1, X-Pump Block, Series: XPB, 0 to 7.5 gpm Flow Rate, 0 to 15-1/2 ft Head, 120 VAC, 2 A, 60 Hz Frequency, 1 ph, 3250 rpm Speed, 2 at 1/25 hp, 32 to 185 deg F, 125 psi Pressure, 3/4 in NPT Connection, Bronze, 6-3/4 in L x 9-5/8 in W x 18-3/8 in H Dimensions
The Taco X-Pump Block® (XPB) is another breakthrough in the design, control and installation of radiant systems that delivers unmatched flexibility in a single unit. It is equally effective when used with open or closed systems, barrier or non-barrier tubing and where the system heat source is a boiler or water heater. The Taco X-Pump Block combines a variable speed mixing control, a heat source circulator, system circulator and heat exchanger in a single unit. This combination delivers complete system isolation between the heat generation side of the system and the heat delivery side, whether radiant tubing, glycol based snowmelt, baseboard and more.
Attributes
Features
- All-in-one heat exchanger, dual-sided circulators and mixing control package
- Use as outdoor reset control, set point control or a delta limiting control
- Requires only four pipe connections for complete installation
- Doesn't require special piping, balancing valve, closely spaced tees, external control or complex wiring
- Plug-in low voltage connections
- Solid state microprocessor design
- Replaceable cartridge design
- Maintenance-free wet-rotor circulators
- Bronze casing for open or closed systems
- Auto pump exercise
- Adjustable reset ratio
- Warm weather shutdown
- Large LCD display
- Requires no outside power supply
