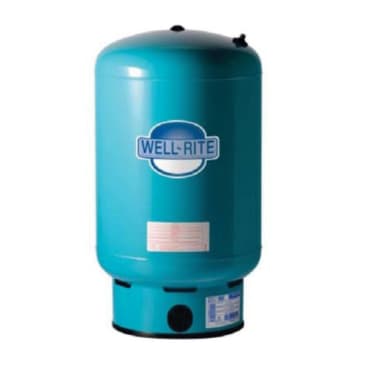

FLEXCON WR120R WELL-RITE 33GAL (11.3DD) VERTICAL STEEL WELL TANK WITH 1 IP CONNECTION
MFR Part #:Â WR 120
SKU #:Â 1121212
Brand:Â Flexcon
UPC:Â 79503302042
Flexcon WR 120 Well Rite Well Tank, FNPT Discharge, 33 gal, 1 in Discharge, 16 in Dia Overall, 125 psi
5 Years Limited
NSF Approved
Product Details
Attributes
Features
Resources
Flexcon Well Tank, Series: Well Rite, FNPT Discharge Connection Type, 1 in Discharge, 16 in Overall Dia, 42-3/4 in Height, 33 gal, 125 psi, 38 psig Precharge, Steel
Capacity:
33 gal
Height:
42-3/4 in
Material:
Steel
Overall Diameter:
16 in
Connection Size:
1 in
Discharge Connection Type:
FNPT
Precharge Rating:
38 psig
Pressure Rating:
125 psi
Series:
Well Rite
- 16 ga cold rolled steel tank
- Appliance-quality paint finish for indoor or outdoor installation
- Water chambers: top chamber is 100% butyl rubber, lower water chamber is copolymer polypropylene
- Stainless steel connection
- High pressure, seam weld, helium, final precharge check testing
- Brass valve with O-ring seal air valve
Product Details
Flexcon Well Tank, Series: Well Rite, FNPT Discharge Connection Type, 1 in Discharge, 16 in Overall Dia, 42-3/4 in Height, 33 gal, 125 psi, 38 psig Precharge, Steel
Attributes
Capacity:Â 33 gal
Height:Â 42-3/4 in
Material:Â Steel
Overall Diameter:Â 16 in
Connection Size:Â 1 in
Discharge Connection Type:Â FNPT
Precharge Rating:Â 38 psig
Pressure Rating:Â 125 psi
Series:Â Well Rite
Features
- 16 ga cold rolled steel tank
- Appliance-quality paint finish for indoor or outdoor installation
- Water chambers: top chamber is 100% butyl rubber, lower water chamber is copolymer polypropylene
- Stainless steel connection
- High pressure, seam weld, helium, final precharge check testing
- Brass valve with O-ring seal air valve
